Function and characteristics

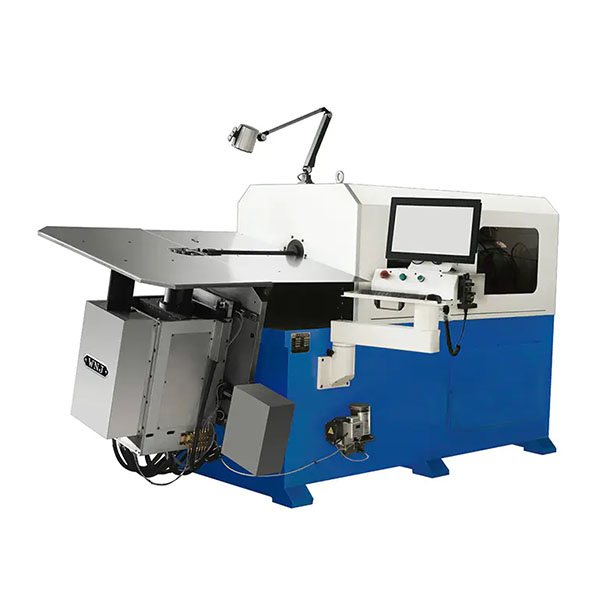

1. This machine is for seven axis gearing design,set up spring with high speed,accuracy and stability.
2. Adopts Taiwan's computer control system and equipped with servo motor imported from Japan.
3. Wire feed with the function of rotary wire,so it is easy to adjust.
4. Computer interface displayed in Chinese and English which makes the operation easy.
5.It is suitable for producing different kinds of wire bending,the forming of different products.
Mian Technique Parameter
|
Style |
ZW-740 |
|
Wire Diameter |
Φ1~Φ4 |
|
Total Power |
9.4 |
|
Number of Axes |
7 Axis |
|
Number of Wire Feed Axes |
2 Pairs |
|
Wire Feed Servo Motor |
2.7 KW |
|
Rotary Wire Servo Motor |
2.7 KW |
|
Up & Down Curved Servo Motor |
1KW |
|
Curved Servo Motor |
1KW |
|
Rotary Mandrel Servo Motor |
1KW |
|
Cutter Servo Motor |
1KW |
|
Machine Dimension(LxWxH) |
3200x1500x1700mm |
|
Machine Weight |
1500 KG |
|
Voltaae |
3AC 380V/50HZ |
Applicable Spring
