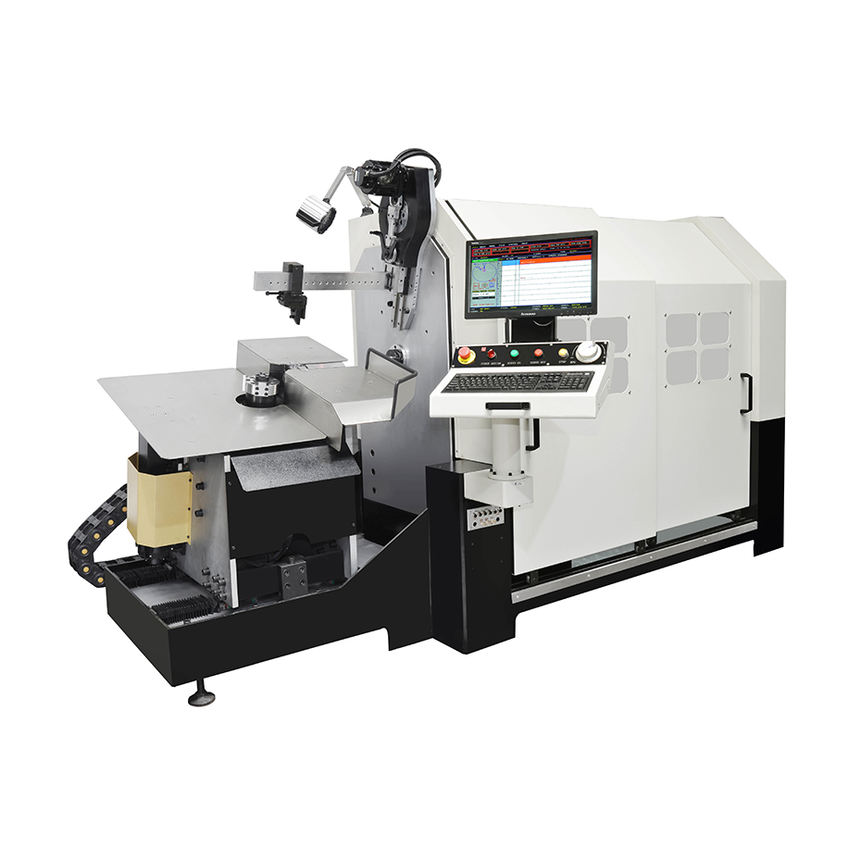

Product Advantage
1、Free arm technology.
2、Windows screen operation.
3、Servo driven free arm technology that allows a forming blade to move freely on an X,Y plane.
4、Intuitive graphics user interface is based on Windows and its crash free characteristic is due to the employment of a bulletproof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
5、Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades.
Technical Parameters
| MODEL | CMM-8-600WB | |
| Wire Diameter | 2.5-6.0mm(Soft wire)/2.0-4.0mm(Spring wire) | |
| Max. Wire Feed | 1000mm | |
| Min. Wire Feed | 0.01mm | |
| Max. Wire Feed Speed | 60m/min | |
| Max. Wire Feed Length | Unlimited | |
| Number Of Axes | 8 Axis | |
| Power | 15KW | |
| Voltage | 220V(Customizable) | |
| Hardware | Industrial | |
| Program Storage | 2500 | |
| Voltage Regulator Power | 20KW | |
| Air Compressor System | Air pressure | 5-6KG/cm |
| Air cylinder | 3pcs | |
| Dimensions | Depth | 3039mm/120" |
| Width | 1400mm/55" | |
| Height | 1700mm/67" | |
| Machine Weight | 4500KG/9921 lbs |
|

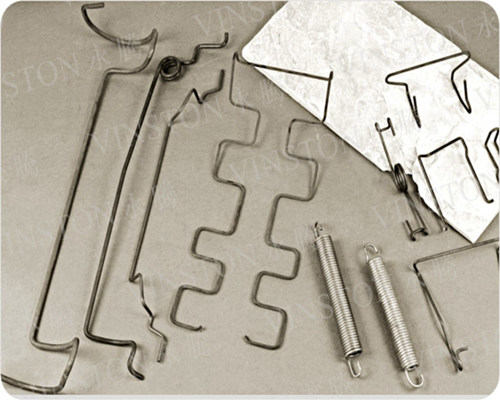

Sample Display
Manufacturability
