Product Advantage

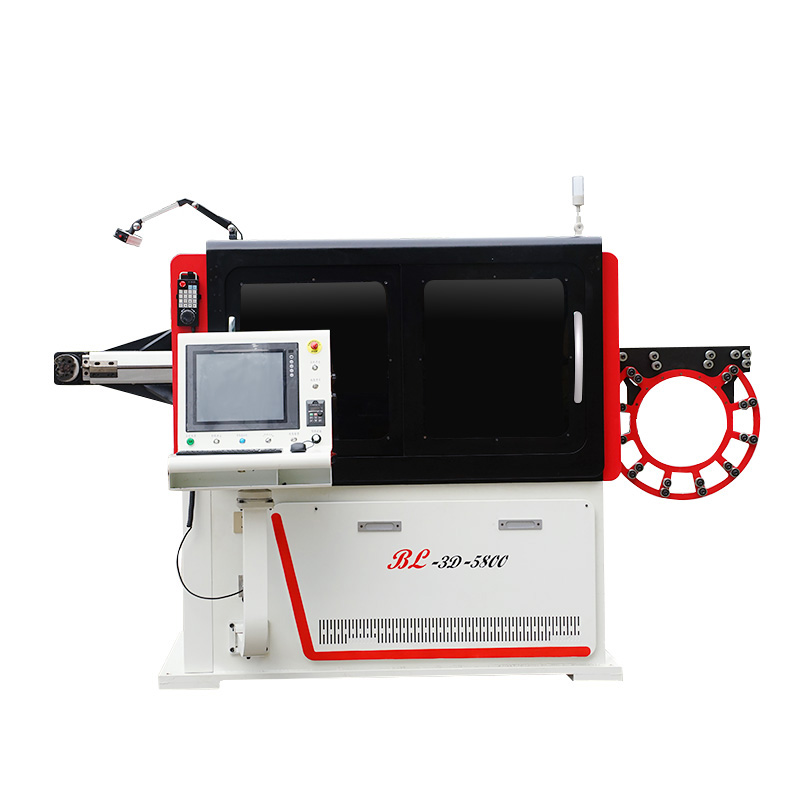

3D wire bending machine
Suitable for different wire diameter, aluminum wire, iron wire, copper wire, stainless steel wire rolled into different circle diameter or different arc. It is usually used in wire products, refrigerator bracket, kitchen shelf, fan net ring, crafts, pet cage and other industries.
The diameter of the processing line is 3.0-8.0mm, and the steel wire is 3-6mm, which is suitable for steel wire and iron wire.
Technical Parameters
| （Model No.） | BL-3D-5800 | |
| No. of Axis | 5 axis | |
| Input OD of Wire | hard material Φ3.0 ～φ 6.0mm |
soft material Φ3.0 ～ φ8.0 mm |
| No. of Feeding Round | 3 sets | |
| Power of Wire Feeding Motor | 4.5KW | |
| Power of Turning Motor | 2.7KW | |
| Power of Wire Cuter Motor | 1.0KW | |
| Power of Moving Motor | 1.0KW | |
| Power of Angle Control Motor | 1.0KW | |
| Weight of Machine | 3000KG | |
| Input Power | 380V/50HZ/3PH | |
| Size（L*W*H） | 3100*2000*1900 | |
Sample Display
Video

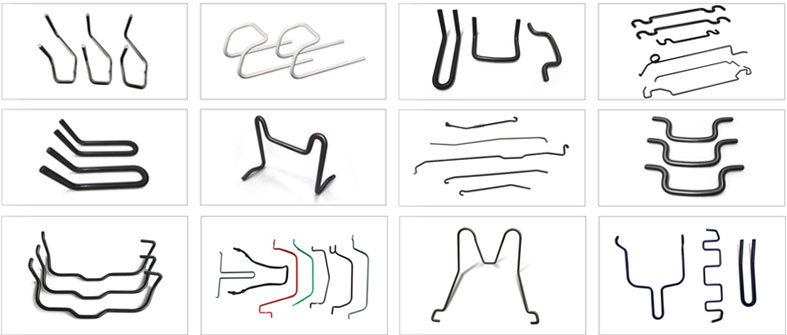

Wire Forming Drawing

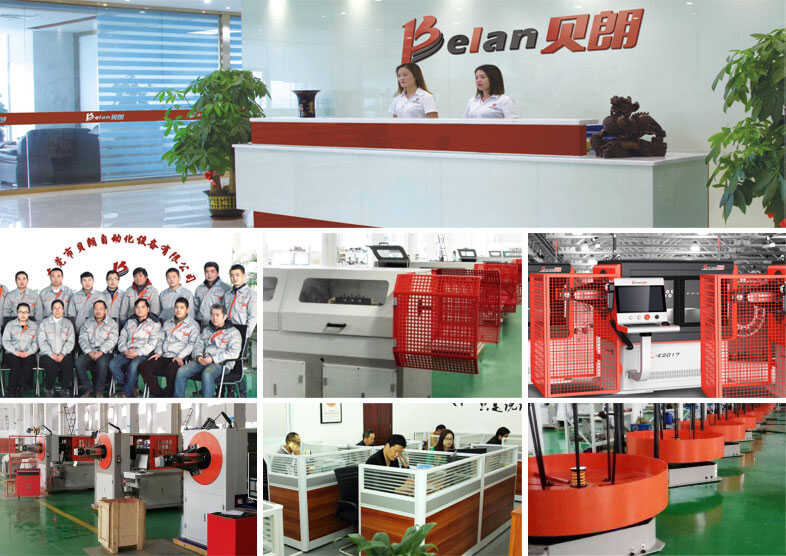

Manufacturing Capacity
Belan automation equipment co., Ltd. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 2D wire bending machine, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
Honor Certification
Customer case
