Product Advantage

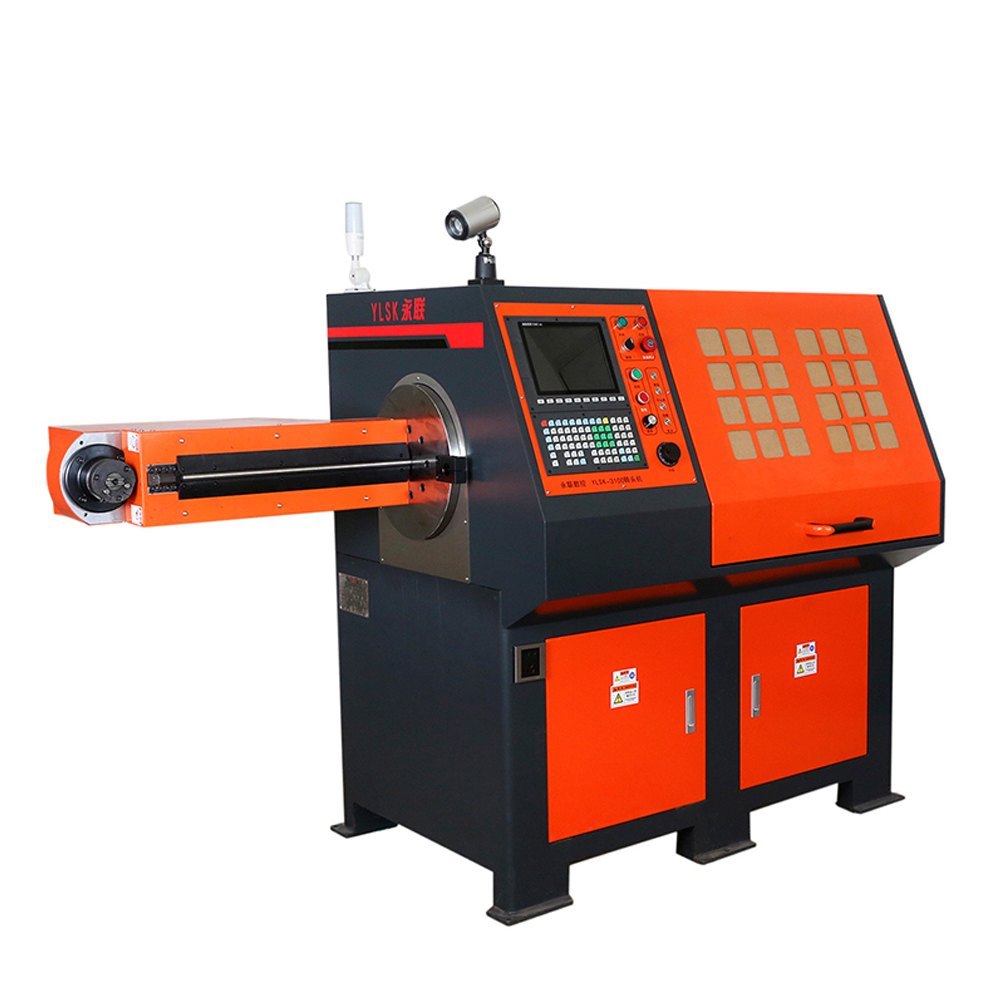

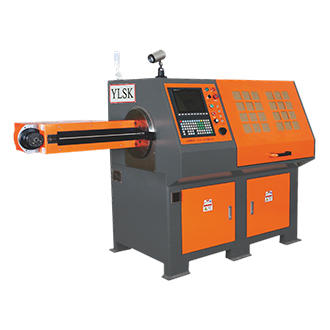

YLSK-3D-3100 CNC Wire Bending Machine is specialized in production of 2D and 3D wire forms with High precision and fast speed. Equipped with advance German Technology. Head rotation is 360 degree which gives feasibility to make the complicated 3D wire forms. High-speed wire feeding mechanism helps faster production of 3D complicated shapes wire forms.
The machine has designed in two models up to wire diameter 6mm & 10mm. Pneumatic system is used for wire feeding. Imported Servo Motors, Reducer and Controller System. Simple Product debugging , Easy to understand & operate, English & Chinese both the language options are available, Stable & fast in production.
Applications are Automobile parts, Agricultural Machines, Manufacturing Industries, Household goods like Hangers, Trolley and many more special shape of wire forms.
Technical Parameters
| M/C Model | YLSK-3D-3060 | YLSK-3D-3100 |
| Wire Diameter | 2.0~6.0 MM | 2.0~10.0 MM |
| Axis count | 3-Axis | 3-Axis |
| Max .wire feed speed | 60m/min | 60m/min |
| Head Rotary motor | 1.3 Kw (plus reducer) | 2.0 Kw (plus reducer) |
| Wire feeding motor | 1.3 Kw (plus reducer) | 3.0 Kw (plus reducer) |
| Bending motor | 1.3 Kw (plus reducer) | 2.0 Kw (plus reducer) |
| Max. feeding length | Unlimited | Unlimited |
| Bending Head Rotation | 360 Degree | 360 Degree |
| Machine size | 2600×1300×1900 MM | 2600×1300×1900 MM |
| Weight | 2800 Kg | 3000 Kg |
| Controller System | Hust-Taiwan | Hust-Taiwan |
| Power | 3-Phase 380V.AC.50HZ | 3-Phase 380V.AC.50HZ |
Sample Display
