Product Advantage

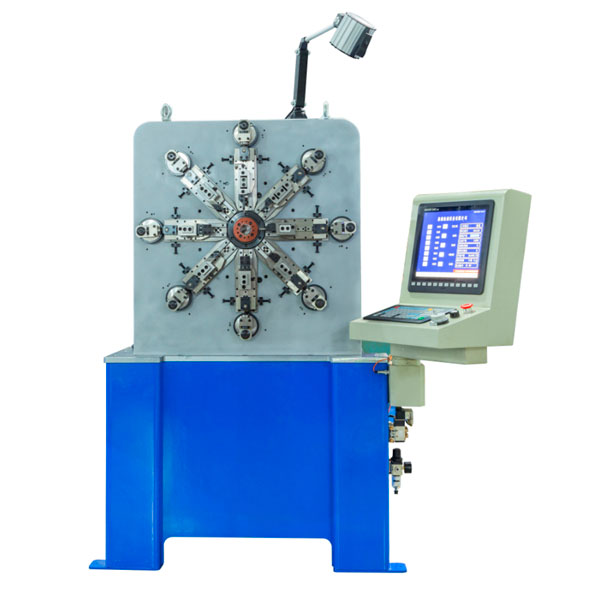

XD-1120 Eleven axis camless CNC Spring Forming Machine for forming wire
Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
Intuitive graphics user interface.
Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
Commonly use in the industries of: automobile, wire forms, entertainment and fitness.
Technical Parameters
| 1.Axis count: | 11 axis | |
| 2.Wire size: | ￠0.30~2.0mm | |
| 3.Max outside diameter: | ￠40mm | |
| 4.Wire feed motor: | 2.7kw | |
| 5.Sliding arm motor×8: | 0.75kw | |
| 6.Quill motor: | 0.75kw | |
| 7.Spinner motor: | 0.4kw | |
| 8.Computer display: | Chinese/English | |
| 9.Max wire feed: | 99999.99mm | |
| 10.Min wire feed: | 0.02mm | |
| 11.Computer memory: | 500 programs | |
| 12.Dimensions: | 1450*550*1650mm | |
| 13.Weight: | 850kg | |
| 14.Power ac: | 3-phase 220v 50hz | |
