Product Advantage

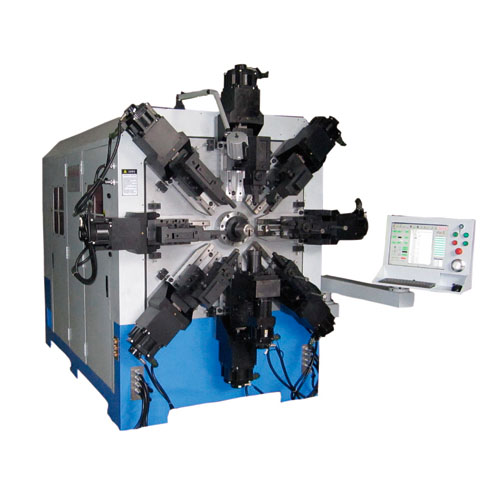

Our camless spring machine is special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
Intuitive graphics user interface.
Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
Commonly use in the industries of: automobile, wire forms, entertainment and fitness.
Technical Parameters
| Model: |
XD-1260WZ |
|
Wire diameter: |
φ2.5～6.0 mm |
|
Axes: |
12 axes |
|
Maximum Outside Diameter: |
110mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
54m/min |
|
Memory Number: |
1000pcs |
|
Display language: |
Chinese&English |
|
Total Motor Consumption: |
50kw |
|
Power AC: |
3-Phase 380v |
|
Dimension (L*D*H): |
3000X2100X2200mm |
|
Wooden Case Dimension: |
3100x2500x2500mm |
|
Machine Weight: |
5000Kg |
|
Gross Weight: |
6000Kg |

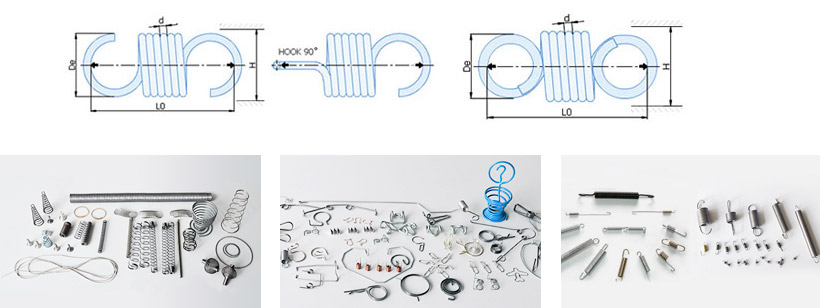

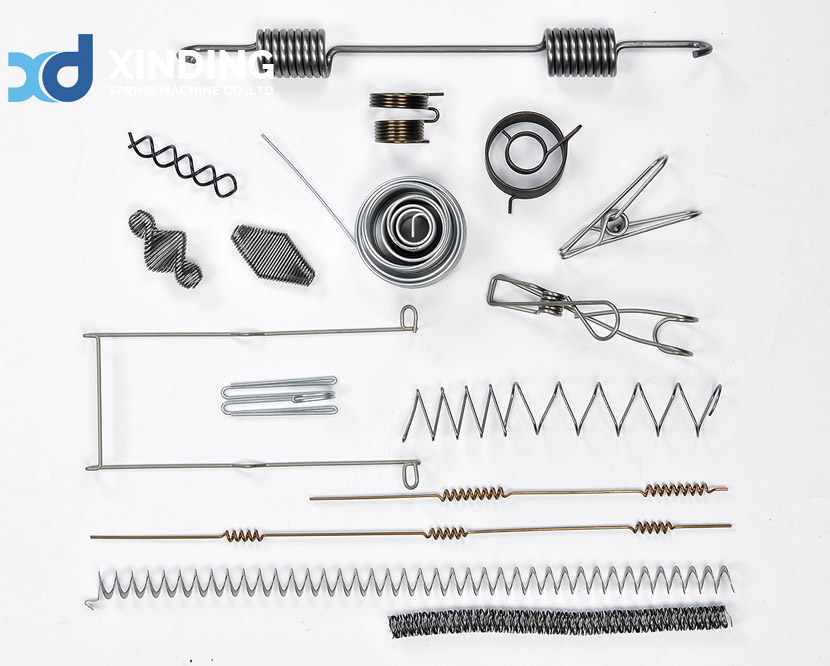

Sample Display
Manufacturability
