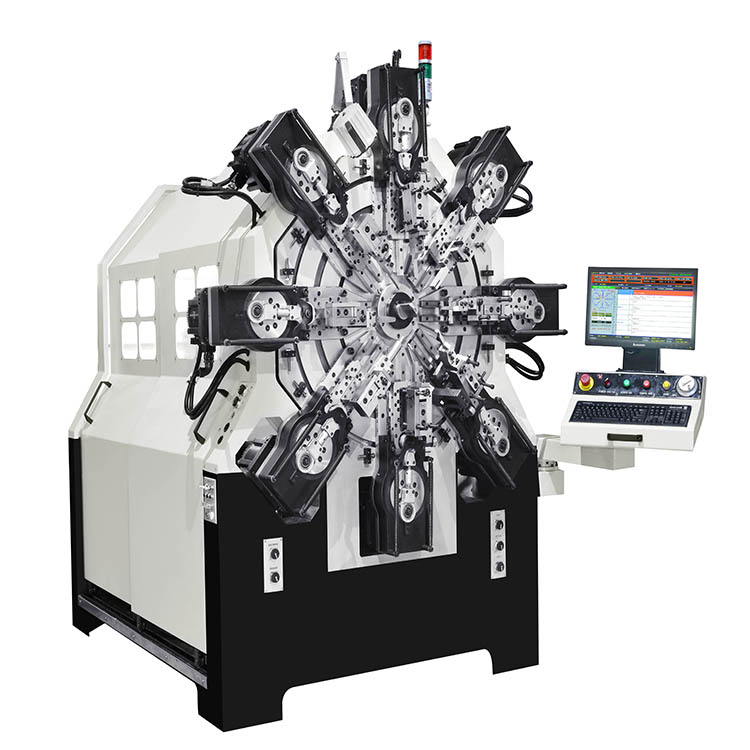

    CMM-12-450R Spring Machine

    Introduction：
    Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.

    GET A QUOTE

    Product Advantage

    1、Windows based operating system.

    2、Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.

    3、Intuitive graphics user interface is based on Windows and its crash free

    4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

    5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

    Technical Parameters

    CMM-12-450R Spring Machine
    MODEL CMM-12-450R
    Wire Dia. 1.2-4.5mm
    Max. Wire Feed 10000.00mm
    Min. Wire Feed 0.01mm
    Max. Wire Feed Speed 30m/min
    Max. Wire Feed Length Unlimited
    Number Of Axes 13
    Power 49.7KW
    Voltage 220V(Customizable)
    Software Industrial Grade Computer
    Program Storage 2500
    Air Compresser System Air pressure 5-6KG/cm
    Air cylinder 3pcs
    Dimensions Depth 2200mm
    Width 1760mm
    Height 2100mm
    Machine Weight 3800KG

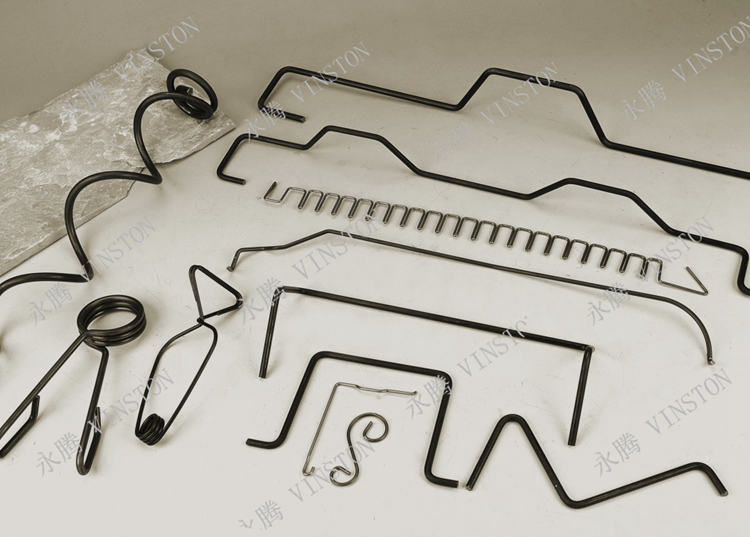

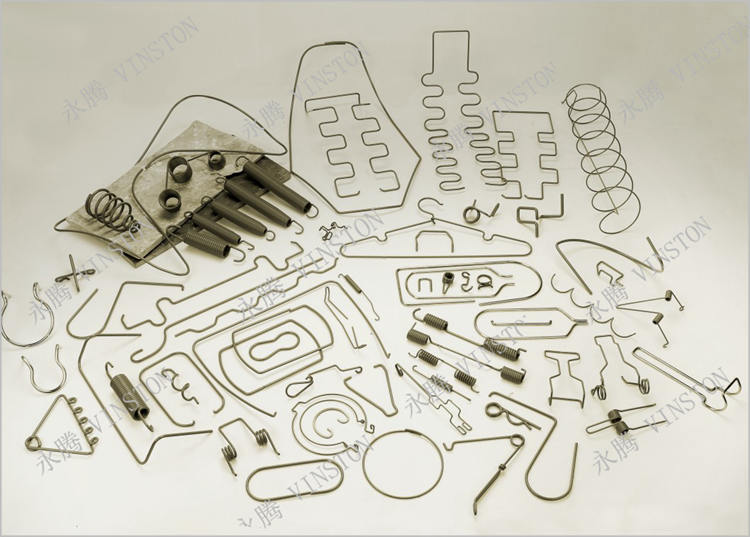

    Sample Display

    CMM-12-450R Spring Machine SamplesCMM-12-450R Spring Machine Samples
