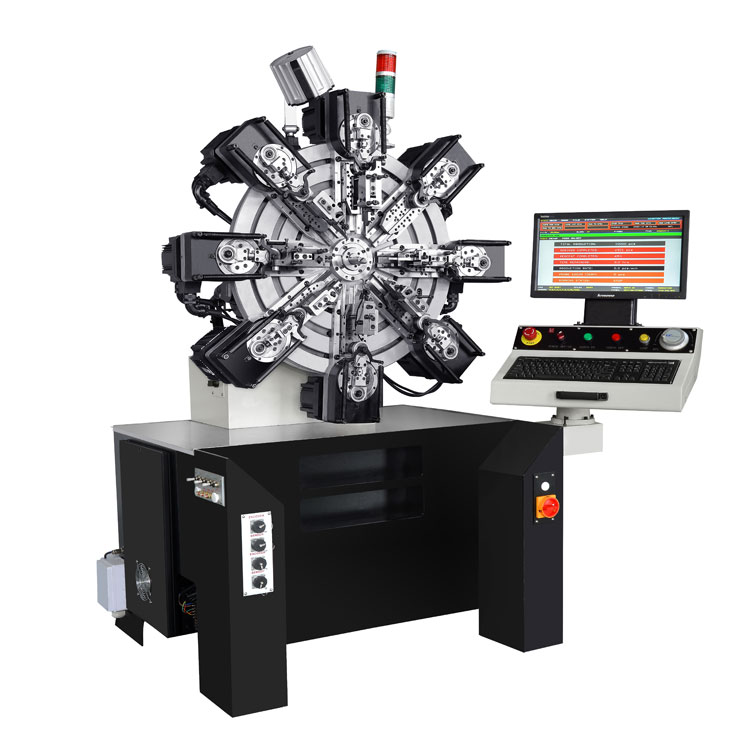

    CMM-10-236 Spring Machine

    Introduction：
    Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.

    GET A QUOTE

    Product Advantage

    1、Windows based operating system.

    2、Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.

    3、Intuitive graphics user interface is based on Windows and its crash free

    4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

    5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

    Technical Parameters

    CMM-10-236 Spring Machine
    MODEL CMM-10-236
    Wire Dia. 0.3-2.3mm
    Max. Wire Feed 10000.00mm
    Min. Wire Feed 0.01mm
    Max. Wire Feed Speed 42m/min
    Max. Wire Feed Length Unlimited
    Number Of Axes 10 Axis
    Power 8.8KW
    Voltage 220V(Customizable)
    Hardware Industrial
    Program Storage 2500
    Voltage Regulator Power 15KW
    Air Compresser System Air pressure 5-6KG/cm
    Pin 3pcs
    Dimensions Depth 1240mm/49"
    Width 1280mm/51"
    Height 1730mm/68"
    Machine Weight 930KG/2050 lbs

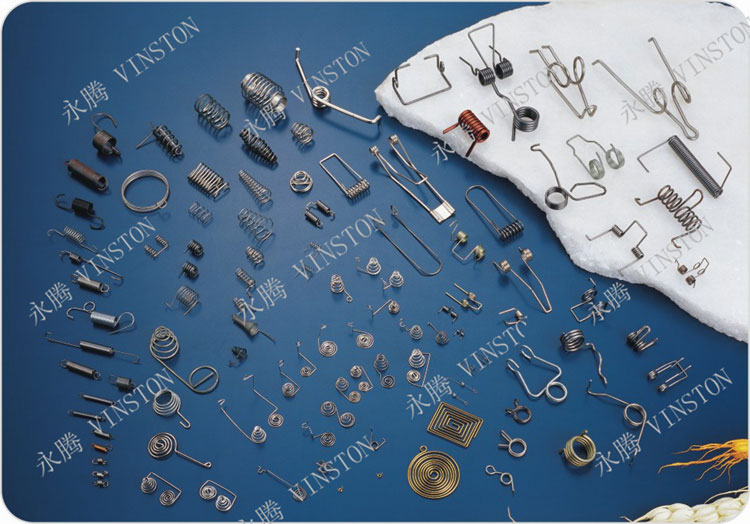

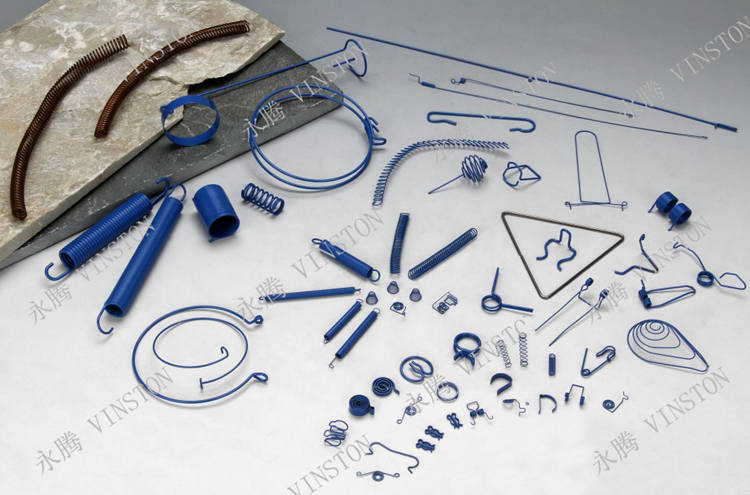

    Sample Display
