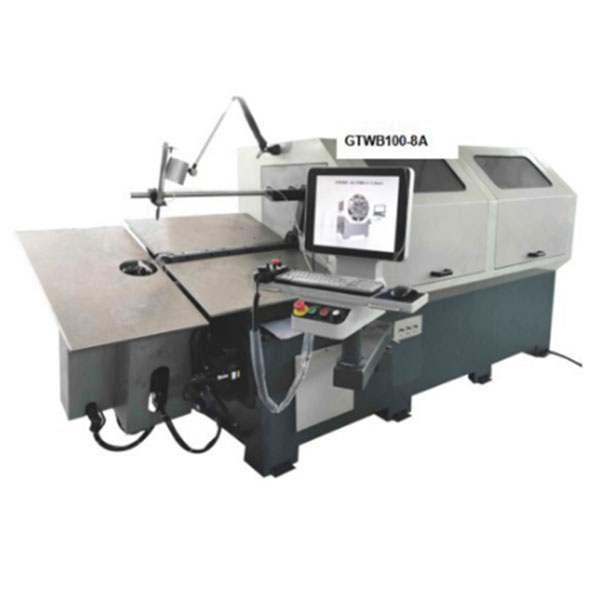

Product Introduction
3D CNC Wire Bending Machine uses a multi-axis industrial computer control system. High-precision processing guarantees product quality. Stable corners. Simple operation and high production efficiency. Stable, fast and accurate positioning. Fully automatic production, saving costs.
Advantages & Feature
3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field

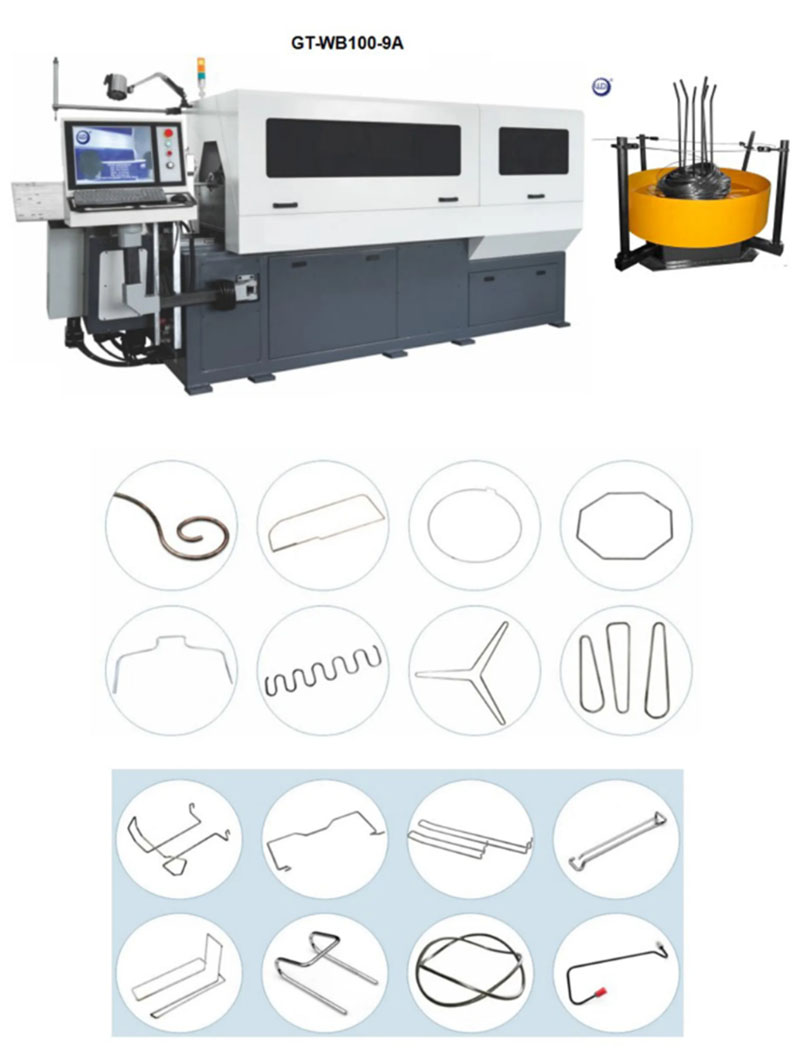

Auto Industry area2）Metal wire industry
Display table and cargo shelf4）Furniture and Kitchen
Hardware industry6）Mattress, Sofa spring area
Architecture area8）Hardware Artcraft
Technical Paramter
|
Model型号 |

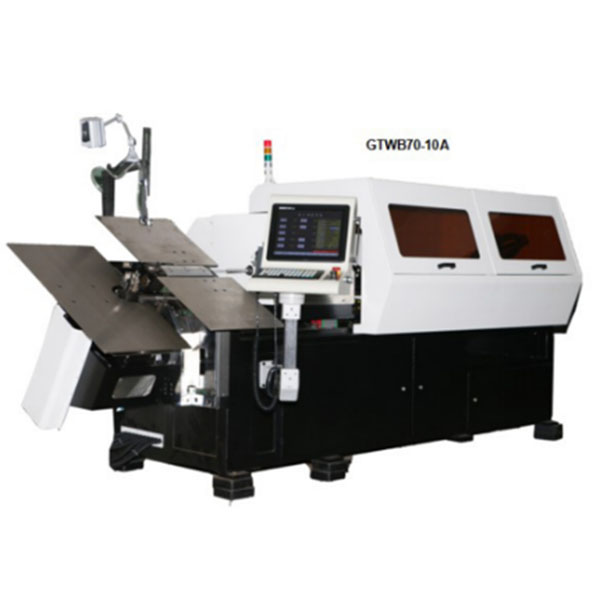

GT-WB-100-9A |
GT-WB-80-8A |
GT-WB-70-10A |
GT-WB-70-8A |
GT-WB-70-7A |
|
Wire size 线径 |
4.0-10.0mm |
4.0-9.0m |
2.0-7.0mm |
2.0-7.0mm |
2.0-7.0mm |
|
Axis轴数 |
9 | 8 | 10 | 8 | 7 |
|
Wire feeding value 送线指令(mm) |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.0 |
|
Feeding length number 送线轮数量 |
3pairs/对 |
3pairs/对 |
3pairs/对 |
3pairs/对 |
3pairs/对 |
|
Wire turning angle 线转角度 |
Unlimited 无限 |
Unlimited 无限 |
Unlimited 无限 |
Unlimited 无限 |
Unlimited 无限 |
|
Platform Lifting Height 平台提升高度 |
+25至-120mm |
+25至-120mm |
+25至-120mm |
+25至-120mm |
+25至-120mm |
|
Twisting head lift height 扭转头升降行程 |
+20至-180mm |
+20至-180mm |
+20至-180mm |
+20至-180mm |
+20至-180mm
|
|
Left to right moving range 从左到右移动范围 |
Left左:100mm Right右:50mm |
Left左:100mm Right右:50mm |
Left左:100mm Right右:50mm |
Left左:100mm Right右:50mm |
Left左:100mm Right右:50mm |
|
Feeding front and back moving range 送线前后移动范围 |
Front前:300mm Back后:100mm |
/ |
Front前:300mm Back后:100mm |
/ | / |
|
Total output power of servo motors伺服电机总功率 |
27.8KW |
25.8KW |
24.2KW |
17.5KW |
16.2KW |
|
配自动线架 Automatic decoiler |
1000KG | 800KG | 500KG | 500KG | 500KG |
|
machine size尺寸(cm) |
420x152x160 |
420x152x160 |
380x1520x1600 |
260x122x160 |
260x122x160 |
|
machine weight机器重量 |
4500.0(kg) |
4200.0(kg) |
3800.0(kg) |
3200.0(kg) |
2800.0(kg) |
