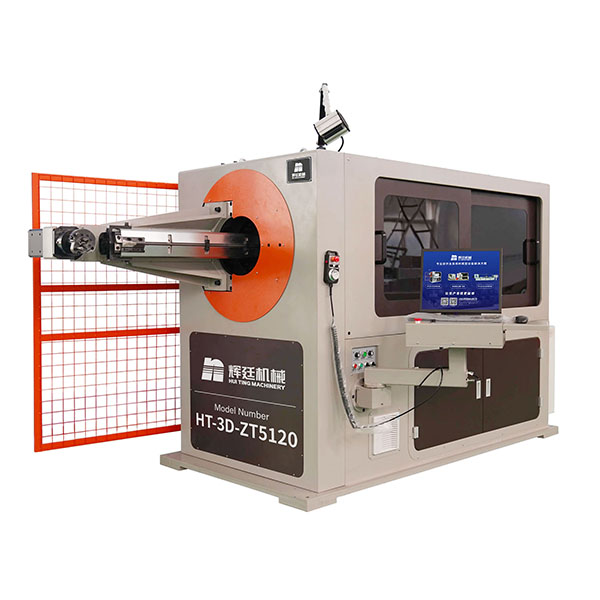

Product Introduction
1. It is specially designed for large wire diameters, to make large wire diameter bending and forming without relying on the punch any more and to make large wire diameter bending and forming easier, safer and more efficient.
2. Can be used for production of auto seat frames, auto traction hooks, auto exhaust pipe hooks, metal wire handiworks, storage cages, supermarket trolleys and shelves and other large diameter wire forming products.
Product Details
Number of axis：5 axes
Wire size: Ø6.0—Ø12.0mm（Tensile strength≦500N）
Number of feeding rollers: 3sets
Power of wire feeding motor：15KW
Power of rotation motor：3.5KW
Power of cutter motor：1.0KW
Power of forward-backward motor：1.0KW
Power of sleeve rotation motor：2.0KW
Weight of machine：3500kg
Input power：380V/50HZ/3P
Dimension of machine：3600*2350*2070mm
