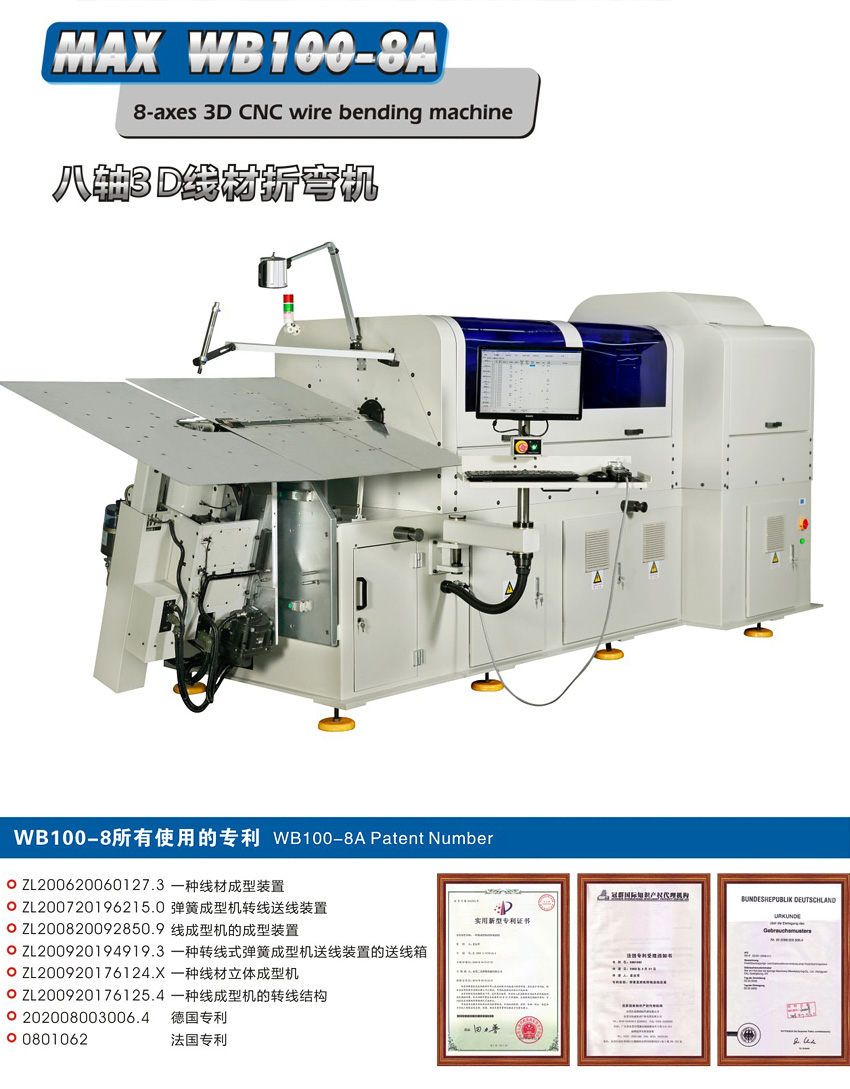

8-axes 3D Wire Bending Machine

Introduction：

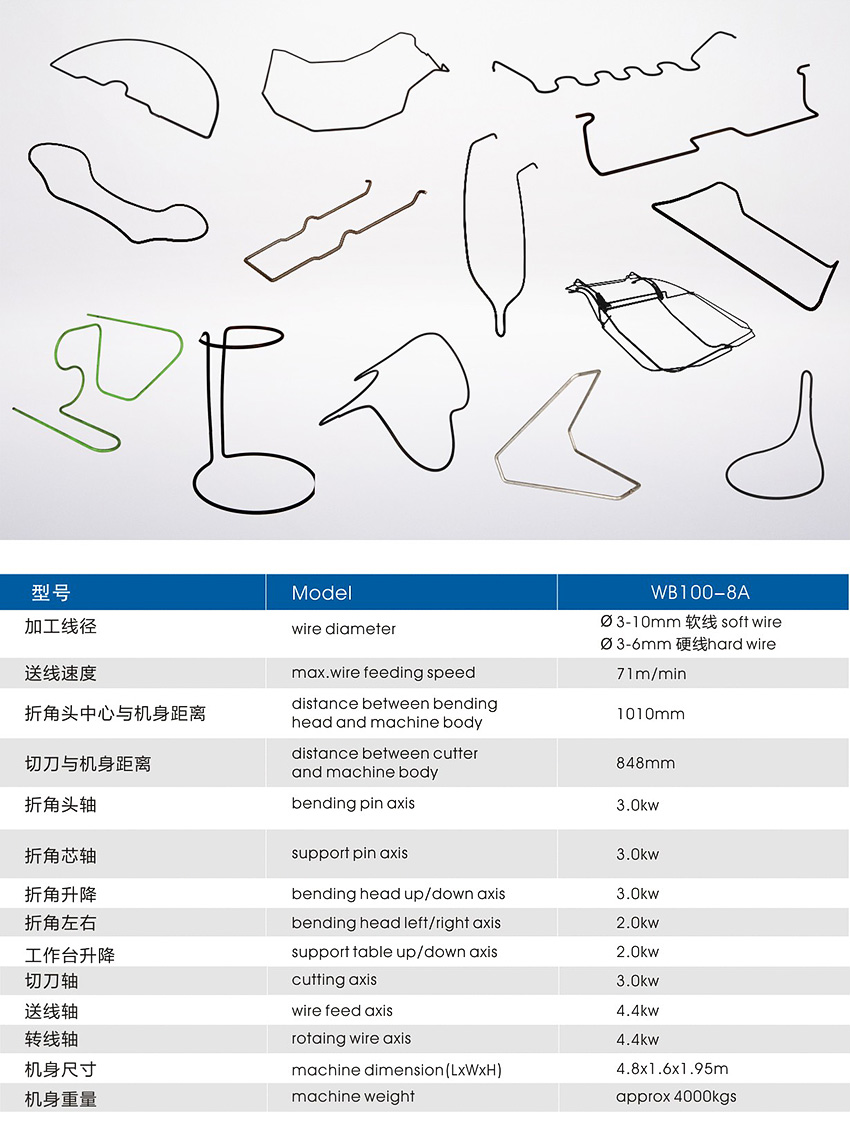

8-axes 3D CNC Wire Bending Machine Parameters:
Wire diameter: 3-10mm soft wire
3-6mm hard wire
Max.wire feeding speed: 71m/min
Distance between bending head and machine body: 1010mm
Distance between cutter and machine body: 848mm
Bending pin axis: 3.0kw
Support pin axis: 3.0kw
Bending head up/down axis: 3.0kw
Bending head left/right axis: 2.0kw
Support table up/down axis: 2.0kw
Cutting axis: 3.0kw
Wire feed axis: 4.4kw
Rotaing wire axis: 4.4kw
Machine dimension(LxWxH): 4.8x1.6x1.95m
Machine weight: approx 4000kgs
