Introduction

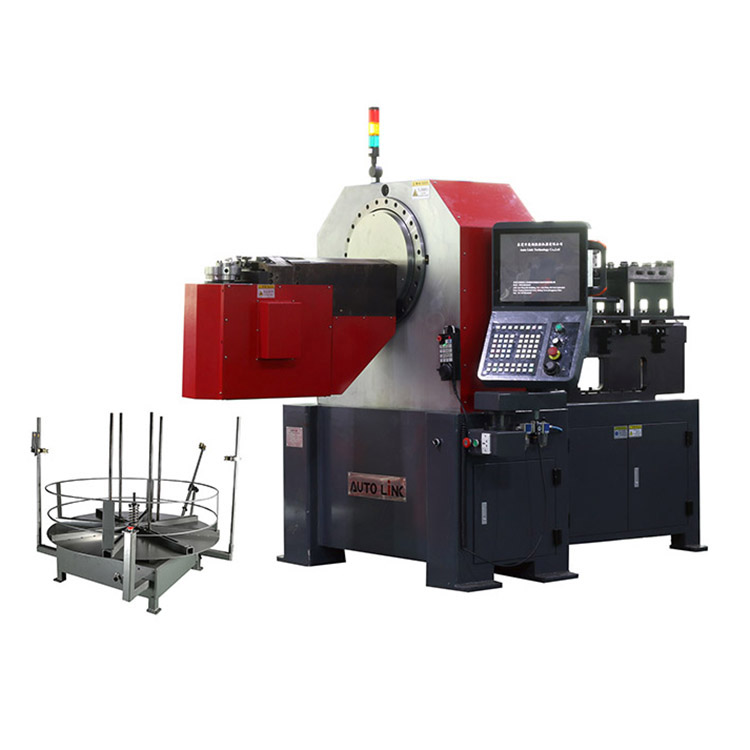

The 3D CNC Wire Bending Machine is a valuable machine for creating intricate 2D or 3D shapes with precision, making it suitable for complex applications. It operates efficiently and produces accurate output forms of any 3D complex shape, just like its 2D counterpart. Auto Link provides three models of the machine designed for different applications, using built-in software to ensure precise bending, straightening, and cutting of the wire. A variety of bend processing methods are used in these machines to meet various bending needs. The wire is received directly from the coil, straightened, bent, and cut accurately using the built-in software. The user can expect a precise output form with the correct bend, thanks to the machine's efficient operation.
The CNC 3D wire bending machine works by utilizing the wire coiling input provided by the decoiler, which has a loading weight capacity ranging from 500kg to 1000kg. The wire is first straightened using the straightener and the wire feeder, which is equipped with a roller chosen by the user based on the input wire diameter. The wire guide then achieves the desired bending formations using its 360-degree rotary.and multiple R-angle options. The bending tool, capable of both inner and outer bendings, can handle even complex bends. The final product is then cut using the cutting tool once the bend is complete. The machine's working process is ensured by the servo motor and CNC programming unit. Auto Link manufactures these machines with custom language preferences and the machines are interfaced in both English and Chinese.
TECHNICAL PARAMETERS
| Model | WB-3D306R |
| Hard Wire(MM) | 2.0-4.0MM |
| Soft Wire(MM) | 2.0-6.0MM |
| Axis | 3 |
| Bending Motor | 1.2KW |
| Wire Feeding Motor(KW) | 1.2 |
| Head Rotary Motor | 1.2KW |
| Air Compressor | 5-6kg/cm |
| Dimension(M) | 2.4*1.4*1.6 |
| Weight(KG) | 1500Kg |
Applications
These machines are capable of producing complex and intricate shapes with precision and efficiency, making them ideal for many industrial applications.
-
Automotive industry
-
Kitchen& bathroom
-
Medical Equipment
-
Gym Equipment
-
Agriculture Equipment
-
Furniture industry
-
Steel V-hook
