Product Advantage

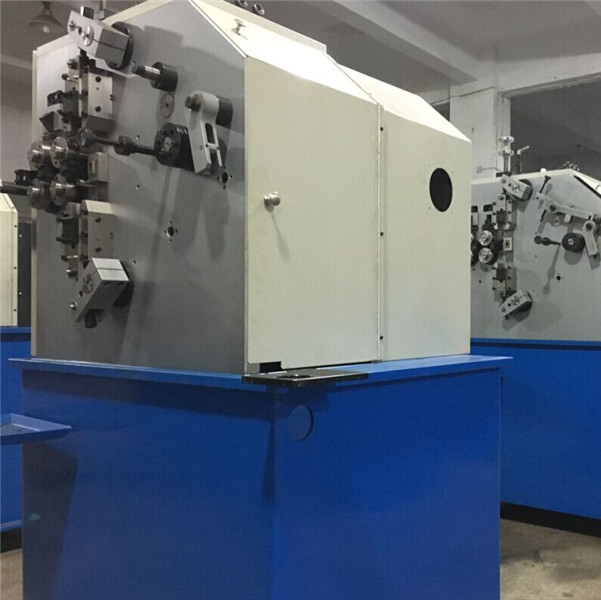

1. XD-226 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis.
2. 5.7" screen display,easy to operate.
3. Cam can be moved clockwisely and anti –clockwisely, wire feed length can be changed while running the machine.
4. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.
5. Compute can automatically decelerate when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Optional accessories: torsion device, oil seal device, pneumatic sensor device, spring length gauge.
Technical Parameters
| Model: |
XD-226 |
|
Wire diameter: |
φ0.15～2.6mm |
|
Axes: |
2-3 axes |
|
Maximum Outside Diameter: |
50mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
250pcs/min |
|
Feed Speed: |
1350m/min |
|
Memory Number: |
1000pcs |
|
Wire Feed Servo Motor: |
3.8kw |
|
Cam Servo Motor: |
2.7kw |
|
Power AC: |
3-phase 380v |
|
Dimensions (L*D*H): |
1200X1000X1700mm |
|
Wooden Case Dimensions: |
1300x1300x1850mm |
|
Machine Weight: |
1000kg |
|
Gross Weight: |
1050kg |

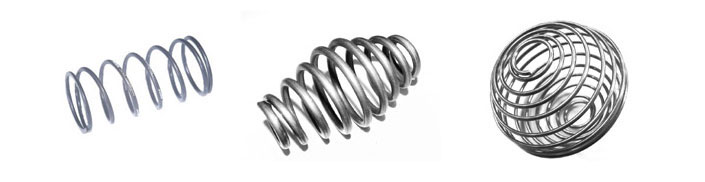

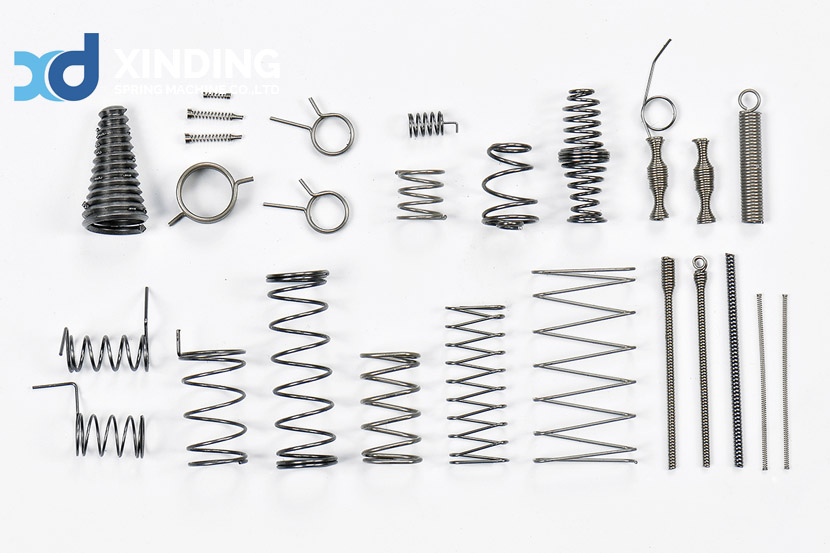

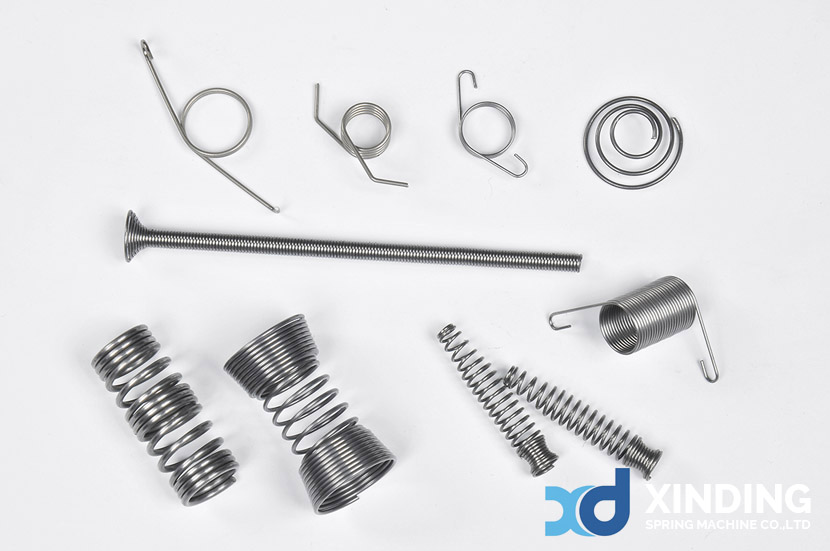

Sample Display
