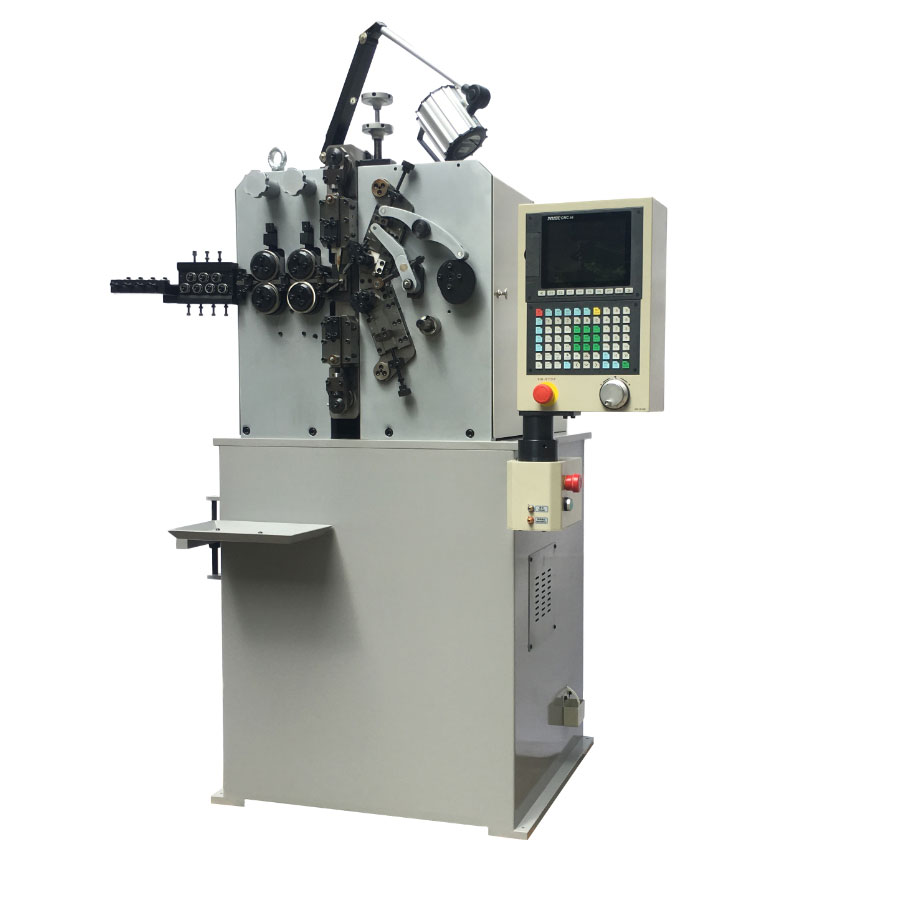

XD-616 Compression Spring Machine

Introduction：
XD-616 Compression Spring Machine Features:

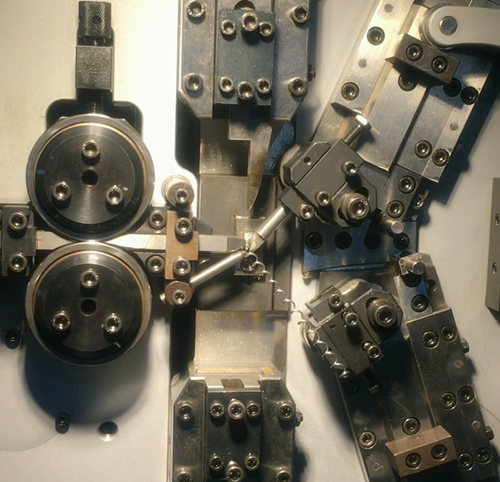

1. Integrated design of cutter and mandrel, arbor can move back and forth.
2. Fieldbus controller, with fast reaction speed and good synchronism.
3. Faster tooling changeover speed of left and right hand spring.
4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.
5. Computer can automatically decelerate according to the timing when probe should be used.
6. Max speed reaches 1200pcs/min, absolutely a nice equipment for small coil springs.
7.Compared with traditional two axis coiler, it has much faster operation and set-up speed.
8. Safety shield and spring length gauge available with the machine.

GET A QUOTE

PRODUCTS

Spring Machine

Spring Coilers

Compression Spring Machine

Extension Spring Machine

Wire Forming Machine

Wire Bending Machine

Camless Spring Machine

Automatic Wire Feeder Machine

Spring End Grinding Machines

Spring Temper Furnace

Spring Machine Controller

Tube-coilers

Wire-straighteners

Spring Machine Toolings

DETAILS

Product Advantage

1. Integrated design of cutter and mandrel, arbor can move back and forth.
2. Fieldbus controller, with fast reaction speed and good synchronism.
3. Faster tooling changeover speed of left and right hand spring.
4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.
5. Computer can automatically decelerate according to the timing when probe should be used.
6. Max speed reaches 1200pcs/min, absolutely a nice equipment for small coil springs.
7.Compared with traditional two axis coiler, it has much faster operation and set-up speed.
8. Safety shield and spring length gauge available with the machine.
XD-616 Compression Spring Machine

Technical Parameters

Model	XD-616
Wire Diameter	0.5-2.0mm
O.D	￠45mm
Production Rate	300pcs/min
Feed Length	unlimited
Wire Feed	2.7kw
Cutter	0.75kw*2
OD Axis	0.75kw
Pitch	0.75kw
Arbor back-and-forth	0.4kw
Bitmap Arbor up-and-down	0.4kw
Monitor Display	Chinese/English
Max. Value	99999.99mm
Min.Value	0.02mm
Memory	150 Program Max 999 Lines for each program
Machine Dimension	110900160cm
Machine Weight	1000kgs
Power	380v 3p 50/60hz

Sample Display

This CNC spring machine produce various ultra-precision irregular springs, compression springs, flat line(spiral power spring)and line molding spring etc.
XD-616 Compression Spring Machine
