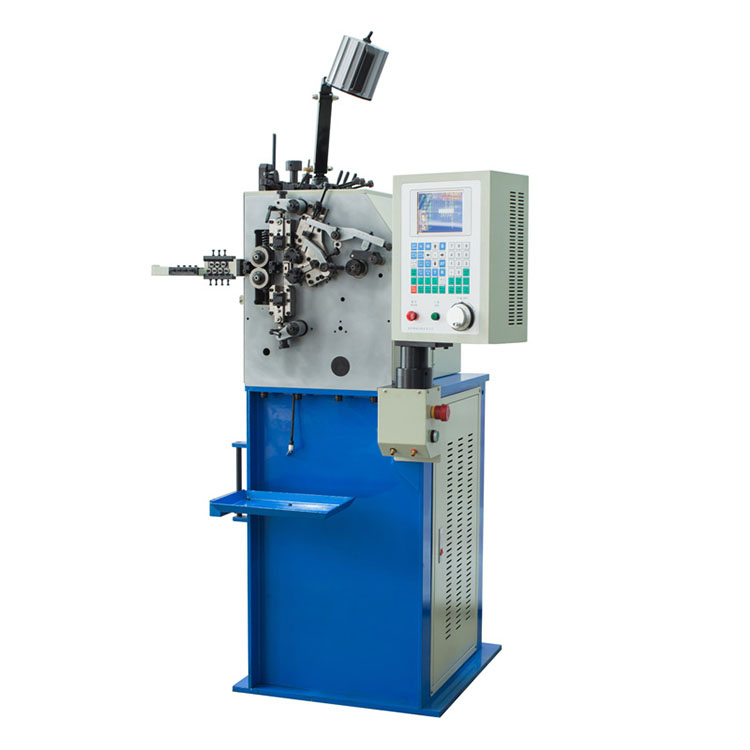

XD-208 Spring Machine

Introduction：
Introduction：
Not only does have the convenient mechanization, but also the high speed and accuracy resulted from servo motion system.

GET A QUOTE

PRODUCTS

Spring Machine

Spring Coilers

Compression Spring Machine

Extension Spring Machine

Wire Forming Machine

Wire Bending Machine

Camless Spring Machine

Automatic Wire Feeder Machine

Spring End Grinding Machines

Spring Temper Furnace

Spring Machine Controller

Tube-coilers

Wire-straighteners

Spring Machine Toolings

DETAILS

XD-208 Advantage

1. XD-208 compression spring machine is a 2/3 axis spring machine consisting of wire feeding axis and cam axis. each action from the machine are controlled by its CNC center.
2. The compression spring machine pitch, outside diameter and cutter are commanded by cam motor. while wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the machine cabinet easily and flexibly.
4. Servo motion system and servo drive controlled, 5.7" screen display, easy to operate.
5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be changed while running the machine.
6. Computer automatically detect temperature of the motor and slow down running speed to protect the motor from overheating.

7. Computer automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time running the machine.
9. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, spring length gauge.

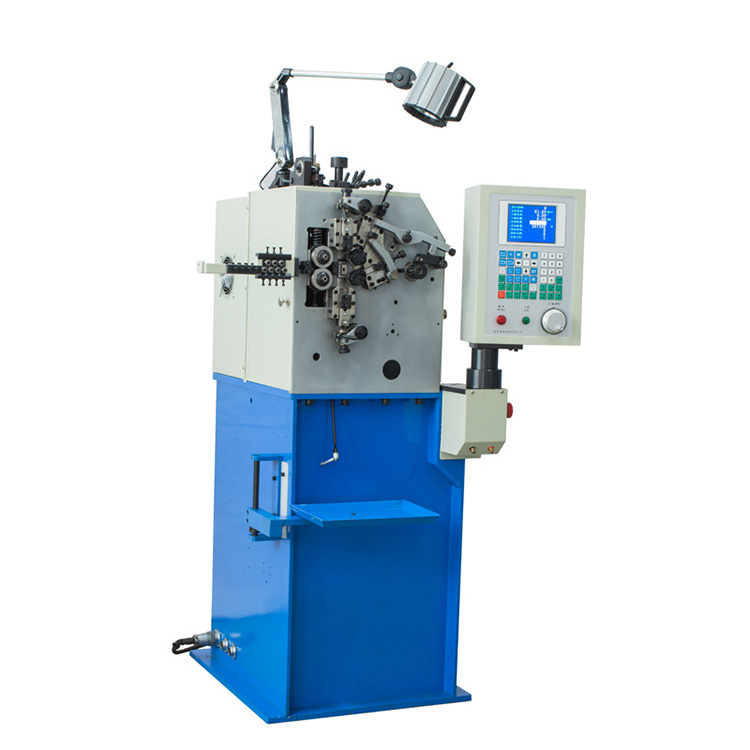

XD-208 Spring Coiler

Technical Parameters

Model:	XD-208
Wire diameter:	φ0.06～0.8mm
Axes:	2-3 axes
Maximum Outside Diameter:	20mm
Maximum Feeding Length:	unlimited
Maximum Manufacture Speed:	550pcs/min
Feed Speed	1200m/min
Memory Number:	1000pcs
Wire Feed Servo Motor:	1.0kw
Cam Servo Motor:	1.0kw
Power AC:	3-Phase 220v
Dimensions (LDH):	650X550X1300mm
Wooden Case Dimensions	1000x1050x1550mm
Machine Weight:	400kg
Gross Weights	450kg

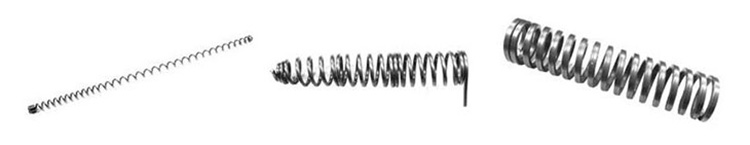

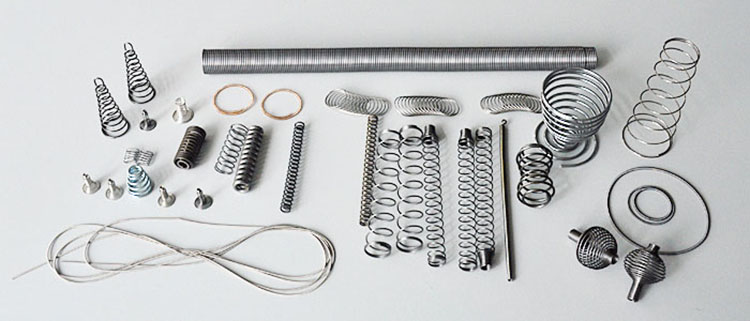

Sample Display

XD-208 compression spring machine can make various compression springs, precision 0.07mm spring, watch springs,wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.

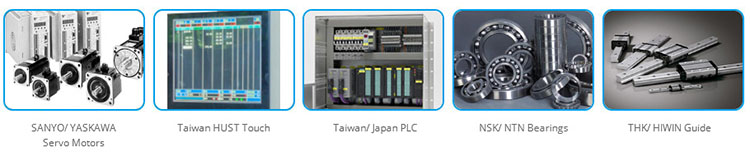

Product Details

1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
