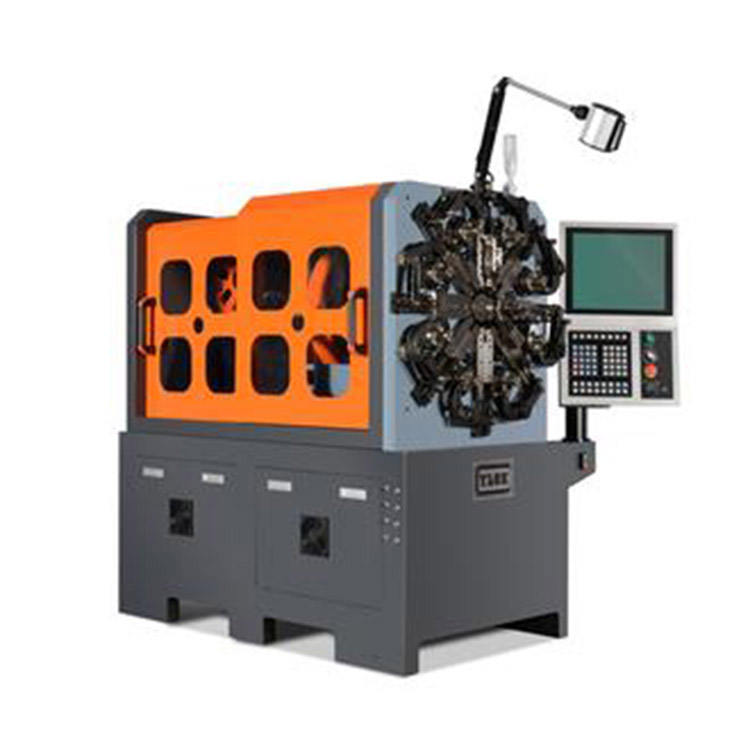

    YLSK- 825RW Universal Spring Machine

    Introduction：
    YLSK-825RW Wire rotation CNC spring machine includes Taiwan computer control system and Japan imported servo motor.
    Cam, wire feeding, rotating mandrel, wire rotation, Coiling spinner (optional accessory), five axis synchronous operation.
    Can manufacture various types of torsion spring, tension spring, special shaped springs used in househols appliences, automobile industries and many other applications.

    GET A QUOTE

    PRODUCT DESCRIPTION

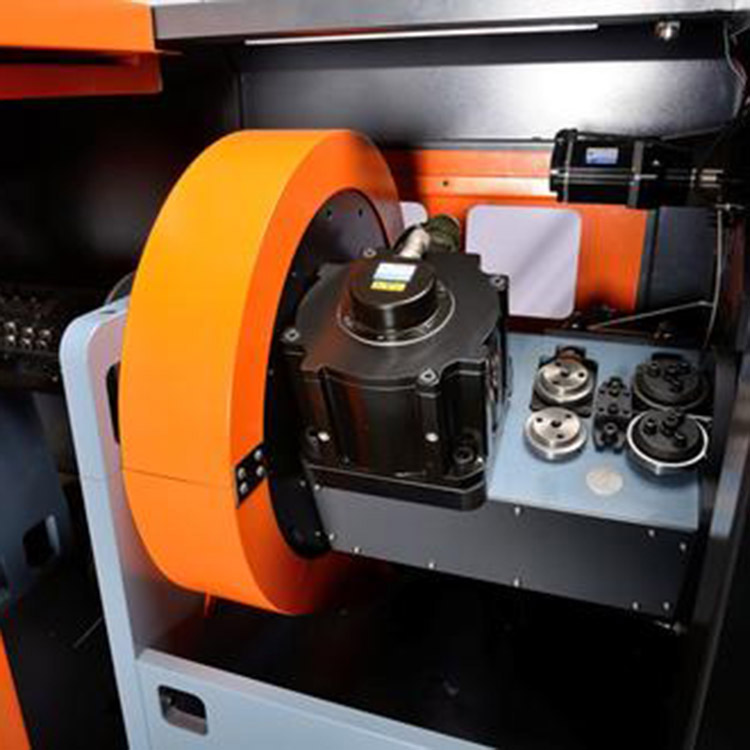

    Wire rotation system is installed in the back of the machine, can be positive and negative rotation, and the computer control wire feed length, the minimum wire feed unit is 0.01mm. Features: Wear noise, cam shaft, high synchronization accuracy.
    Rotating core axis can be positive and negative. The coiling device is mounted on slide, and can realize the positive and negative rotation of the multi ring.
    This machine can manufacture various types of hard type compression springs, tension spring, torsion spring, conical shaped spring, flat spring and other special shaped spring. Can be used in Manufacturing Industries, Electronics, Toys, Home appliances, Sports equipment, Automotive and other industries required precision spring.

    Model YLSK-825RW
    Machining wire diameter (MM) Ø0.2～Ø2.5
    Axis Count 5 Axis
    Max feeding Length (MM) Unlimited
    Program Storage 2000 Max
    Instruction value of wire feed ±0.01～±9999.99mm
    Instruction value of cam ±0.10～±359.90
    Servo motor of wire feed (KW) 2.7
    Servo motor of cam (KW) 2.7
    Servo motor of Z-axis (Quill) servo (KW) 0.4
    Servo motor of wire rotation (KW) 2.7
    Servo motor of Coiling Spinner (Optional) (KW) 0.4
    Machine size LXWXH 1600X1300X1800
    Weight (Kg) 1200
    Power 380V 3-Phase

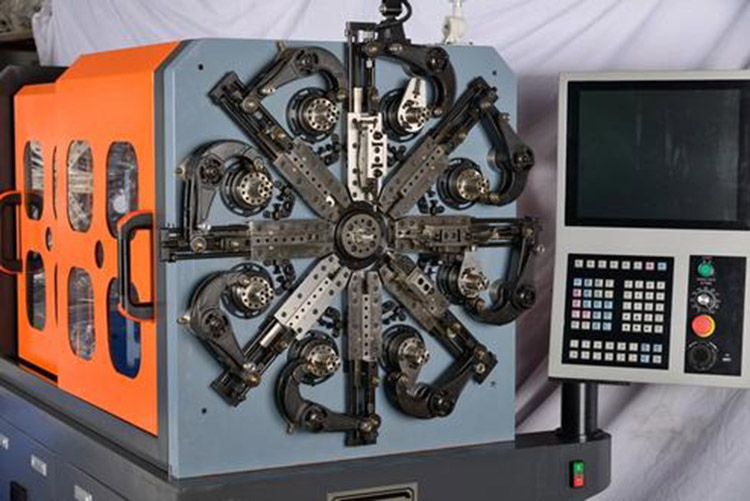

    Detail

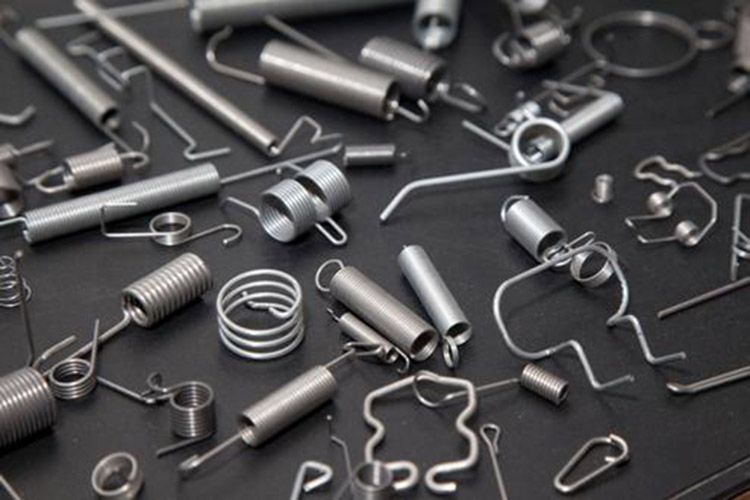

    Sample Display
