Product Description

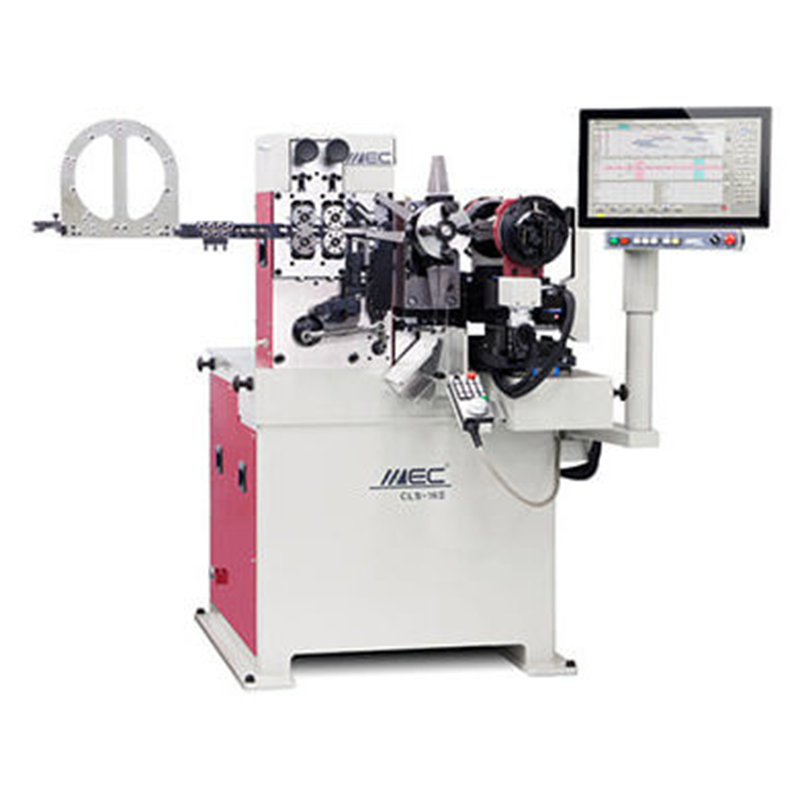

An extension spring machine with a maximum wire diameter of 1.6 mm.
Maintains the popular high-speed productivity for English loops and bicyclic loops and greatly improves the preparation for German hooks, U hooks, and other atypical hooks.
Enable high-speed production of extension springs with a beautiful hook shape
- A dedicated extension spring machine for wire diameters of 0.5 to 1.6 mm.
- Produces the beautiful hook shape expected of the CLS series.
- Enables a much higher speed of production than general torsion machines.
- The 11 axis control of the CLS-16II enables many locations to be controlled by values, including the coiling point for 3D operations, and provides high performance preparation and reproduction.
specifications
| Format | CLS-16II |
|---|---|
| Wire diameter | 0.5～1.6mm |
| Outside coil diameter | 20mm |
| D/d | 4 or more (*) |
| Spring Length | Wire diameter x 10 coils, up to 140 mm (*) |
| Feed Axis | Minimum input 0,001 mm, maximum speed 165 m/min |
| Point Axis | Resolution 0.001mm |
| Initial tension Axis | Resolution 0.001° |
| Torsion Axis | Resolution 0.001° |
| Cam axis | Resolution 0.001° |
| Transfer axis | Resolution 0.001° |
| Clamp axis | Resolution 0.001° |
| Tooling axis x 2 | Resolution 0.001° |
| Tooling slide axis x 2 | Resolution 0.001° |
| Power source | AC 200V 3-Phase, 20A |
| Solenoid valves | 8pcs |
| Service air pressure | 0.5MPa（5.1kgf/cm2） |
| Net weight | 1,200kg |
| Control device | OS Windows7 |
| Display | 21.5 inch touch panel |
| External memory | USB thumb drive |
| Service Temp. | 0～40°C |
| (*) May differ according to the wire diameter |
