    XD-CNC20 Extension Spring Machine

    Introduction：
    1. XD-CNC20 extension spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. mechanical part has eight sets of sliding blocks.
    2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    3. XD-CNC20 cnc spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.

    GET A QUOTE

    Product Advantage

    1. XD-CNC20 extension spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. mechanical part has eight sets of sliding blocks.
    2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    3. XD-CNC20 cnc spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.

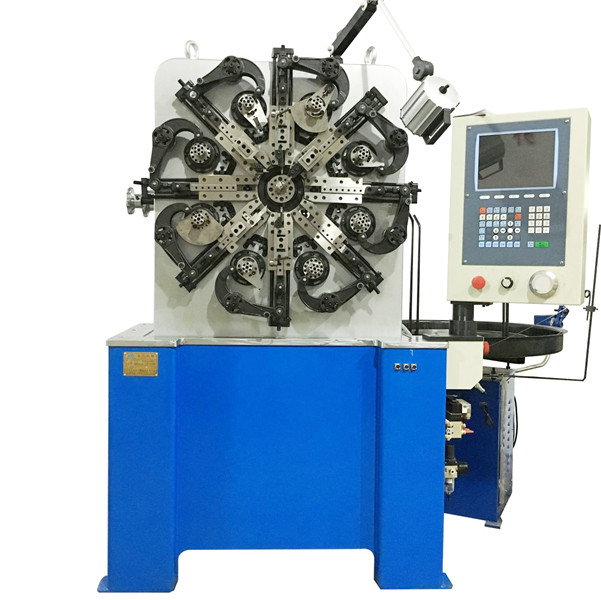

    XD-CNC20 Extension Spring Machine
    extension spring machine wire

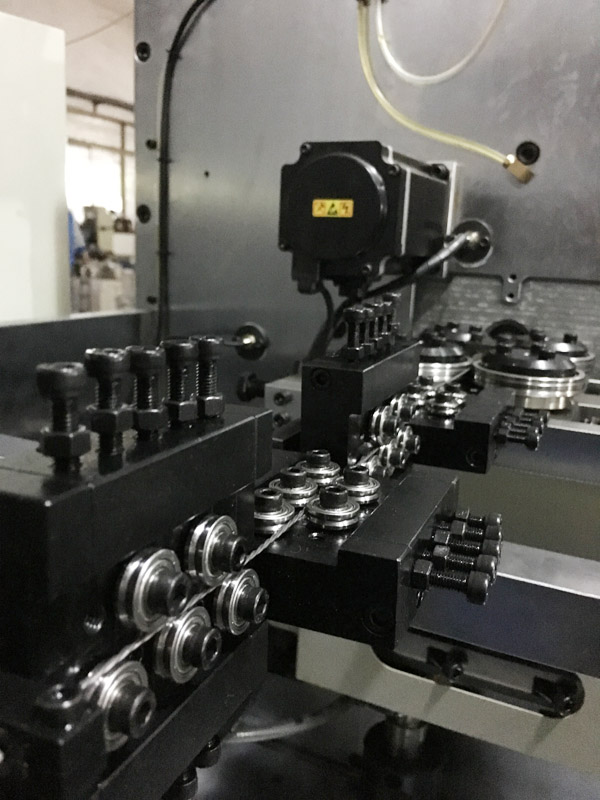

    extension spring machine feeder

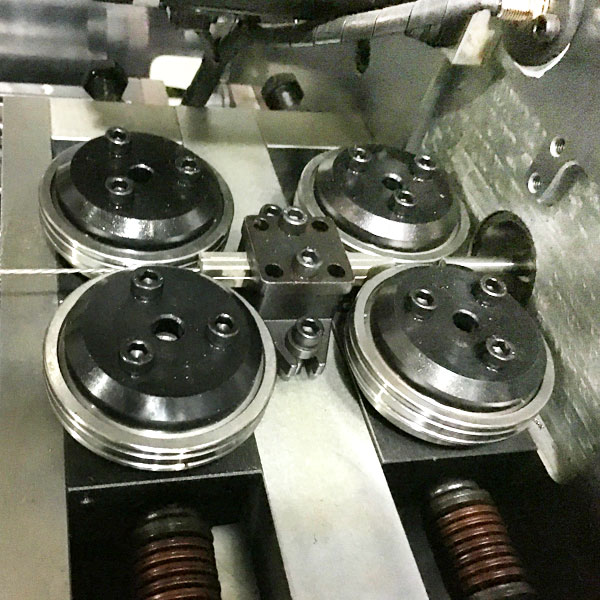

    extension spring machine gearbox

    Technical Parameters


    Model:

    XD-CNC20

    Wire diameter:

    φ0.3～2.3 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed:

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Quin Servo Motor:

    0.75 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1400X550X1600MM

    Wooden Case Dimensions:

    1600x600x1700mm

    Machine Weight:

    900Kg

    Gross Weight:

    950Kg

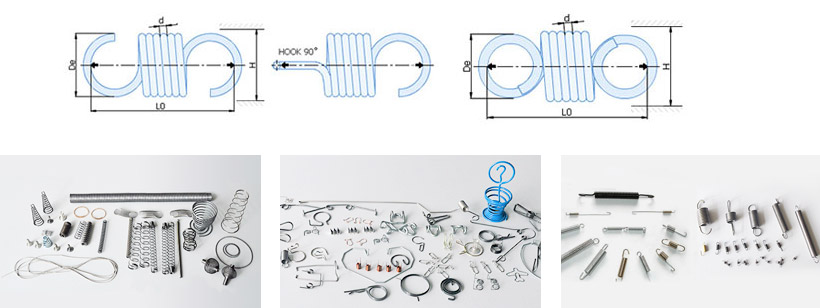

    Sample Display

    This CNC extension spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.
    XD-CNC20 extension spring machine


    Manufacturability


    spring coiler manufacturability
