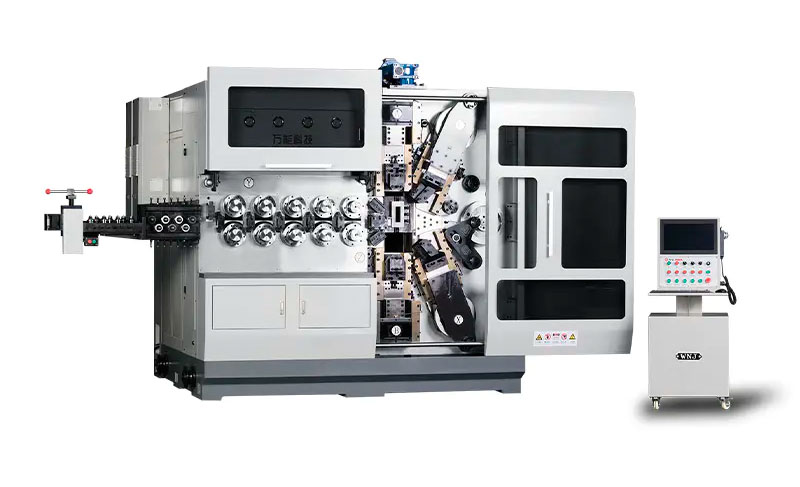

Product Description
1. Controlled with twelve axes: wire feed axis (5 axes), upper cutter axis, lower cutter axis, upper variable diameter axis, lower variable diameter axis, variable diameter movable axis, pitch axis and core pulling axis.
2. The twelve axes can work single-step or synchronously.
3. Computer interface displayed in Chinese and English which makes the operation easy.
4. Equipped with right and left rotation cutter frame.
5. Cutter can perform straight cut, opposite cut and twist cut.
6. Computer has automatic programming function.
7. Realize 3D analog programming and remote control.
Technical Parameters
|
Style |
TK-8120 |
|
Number of Axes |
Twelve axes (wire feed axis (5 axes), upper cutter axis,lower cutter axis,upper variable diameter. axis,lower variable diameter axis, variable diameter movable axis, pitch axis and core pulling axis) |
|
Wire diameter (Carbon steel wire) (mm) |
φ6〜φ12 |
|
Total power (kw) |
151 |
|
Oil Quenching Line≤1900 |
≤φ12 |
|
Max. Outside Diameter(mm) |
φ180 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed(m/min) |
100 |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
5Pairs |
|
Variable diameter motor (kw) |
8×2 |
|
Pitch Axis Motor ( kw) |
8 |
|
Wire Feed Axis Motor (kw) |
10×5 |
|
Cutter motor (kw) |
30×2 |
|
Variable diameter movable (kw) |
8 |
|
Core Pulling Motor (kw) |
2.7 |
|
Machine working state size (LxWxH) |
3800x2500x2700 |
|
Main Host Weight (kg) |
165500 |
|
Voltage |
3AC 380V/50HZ |

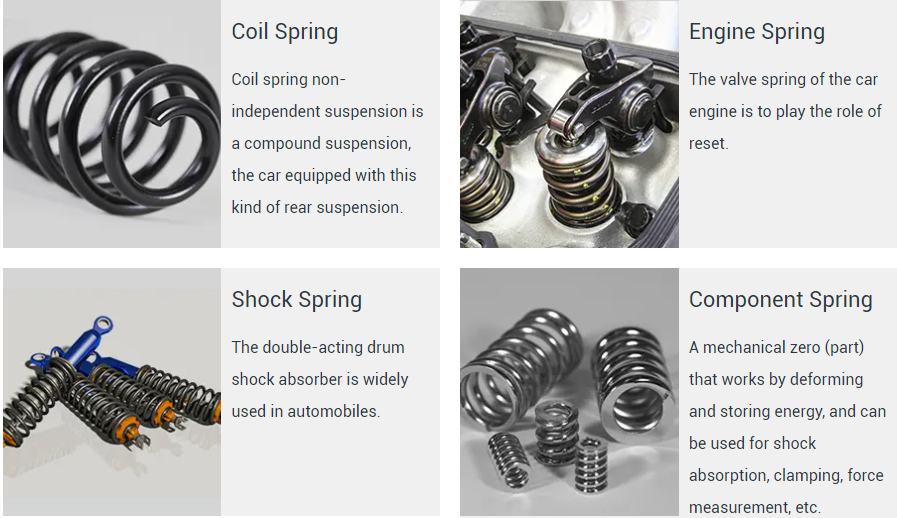

Sample Display
