Function point
1. Five-axis control: wire feed shaft, cam shaft, upper cutter shaft, lower cutter shaft, and spacing shaft.
2. The five axes can operate synchronously or in a single step.
3. The computer has a Chinese and English interface, which is easy to operate.
4. Equipped with left- and right-hand winding cutters.
5. The cutter can realize straight cutting, half cutting and swing cutting.
6. The computer has automatic programming function.
Mian Technique Parameter
|
Model |

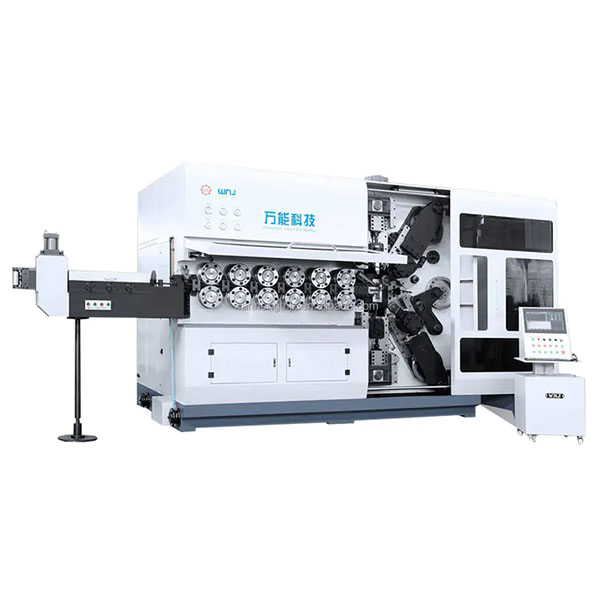

TK-7200-6 |
|
Number of CNC axes |
7 axes (wire feed, diameter reduction shift, pitch, cam, upper cutter, lower cutter) |
|
Steel wire diameter (mm ) |
Φ9-Φ23 |
|
Maximum outer diameter (mm ) |
Φ260 |
|
Wire length |
unlimited |
|
Feeding speed |
87m/min |
|
Rotation |
about |
|
Forming method |
double point |
|
Number of wire feed wheels |
6 pairs |
|
Camshaft motor (kw) |
15 |
|
Pitch shaft motor ( kw) |
11 |
|
Wire feed shaft motor ( kw) |
16*6 |
|
Upper cutter motor (kw) |
42 |
|
Lower cutter motor (kw) |
42 |
|
Machine Dimensions (LxWxH ) |
5100x2430x2800 |
|
Machine weight (kg) |
35000 |
|
Power supply |
Three Phase 380V.AC.50HZ |
Applicable Spring
