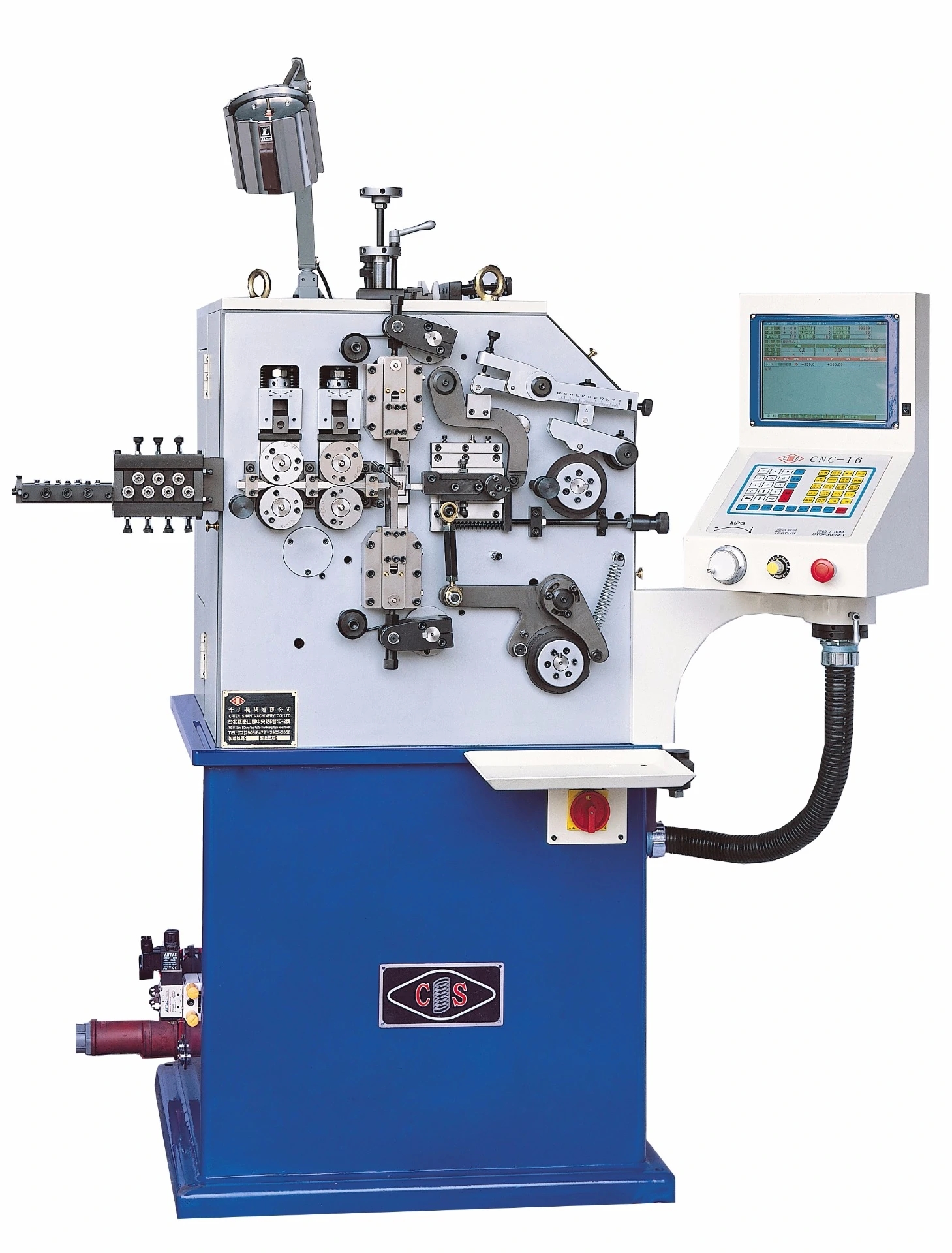

    CNC-16 Torsion Spring Machine

    Introduction：
    CNC-16 Torsion Spring Machine
    · Wire Diameter suitable for 0.4 ~ 1.6 mm.
    · Max O.D. up to 45 mm.
    · 2-axis control, for wire feed and pitch mechanism.
    · High precision equipped with CNC controlled servo-motion system
    · High production speed Max. up to 350 pcs/min..
    · Simplified setup and program with English/Chinese platform.
    · Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

    GET A QUOTE

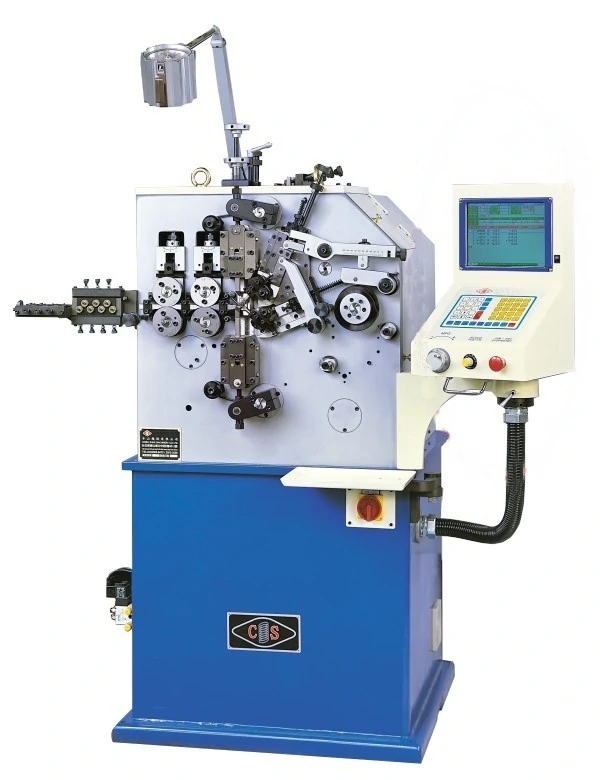

    CNC-16 Torsion Spring Machine

    Technical Parameters


    Wire Diameter: 0.4 ~ 1.6 mm
    Max. O.D.: 45 mm
    Max. Production Speed: 400 pcs/min
    Feed Length: Unlimited
    Feed Speed: 150 m/min
    Feed (Y) Axis (kw): Y Axis 2.0 KW
    Cam (X) Axis (kw): X Axis 2.0 KW
    Monitor Display: Color / Chinese / English
    Max. Value: X : 359.99° Y : 99999.99 mm
    Min. Value: X : 0.01° Y : 0.01 mm
    Memory: 999 Programs Max. & 250 Lines for each program
    Machine Dimensions: 138 x 98 x 168 cm
    Wooden Case Dimensions: 194 x 140 x 194 cm
    Machine Weights: 850 Kgs
    Gross Weights: 1180 Kgs
    Power: 220V 3P 50/60Hz
