Function point
1. Six-axis control: 1. Feeding shaft 2. Upper cutter shaft 3. Lower cutter shaft 4. Upper reducing shaft 5. Lower reducing shaft 6. Spacing shaft.
2. The eight axes can operate synchronously or in a single step.
3. The computer has a Chinese and English interface, which is easy to operate.
4. Equipped with left and right-handed coiling knife holders.
5. The cutter can realize straight cutting, half cutting and twist cutting.
6. The computer has 3D automatic programming, modeling simulation and other functions.

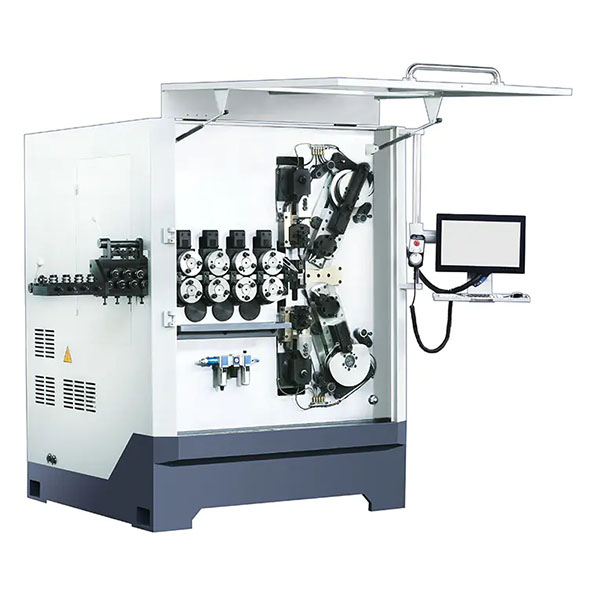

Mian Technique Parameter
|
Model |
TK-690 |
|
Number of CNC axes |
Six axes (wire feed, upper cutter, lower cutter, upper diameter reduction, lower diameter reduction, spacing) |
|
Steel wire diameter (mm) |
Φ2~Φ9 |
|
Maximum outer diameter (mm) |
Φ120 |
|
Wire length |
unlimited |
|
Feeding speed |
80 m/min |
|
Rotation |
about |
|
Forming method |
double point |
|
Number of wire feed wheels |
4 pairs |
|
Reducer shaft motor (kw) |
Upper reducing slider: 2.7 Lower reducing slider: 2.7 |
|
Wire feed shaft motor (kw) |
30 |
|
Upper cutter motor (kw) |
11 |
|
Lower cutter motor (kw) |
11 |
|
Pitch shaft motor (kw) |
4.5 |
|
Machine Dimensions (LxWxH) |
2100x1800x2200 |
|
Machine weight (kg) |
7100 |
|
Power supply |
Three Phase 380V.AC.50HZ |
Applicable Spring
