Function point
1. Controlled with five axis:wire feed axis,cam axis,up -cut blade axis,down-cut blade
2. The five axis can work single-step or synchronously.
3. Computer interface displayed in Chinese and English which makes the operation eas.
4. Equipped with right or left-handed winding blade rest.
5. The cutter can perform straight cut, twist cut and swing cut.
6. The computer has software functions of automatic programming.
Mian Technique Parameter
|
Stryle |

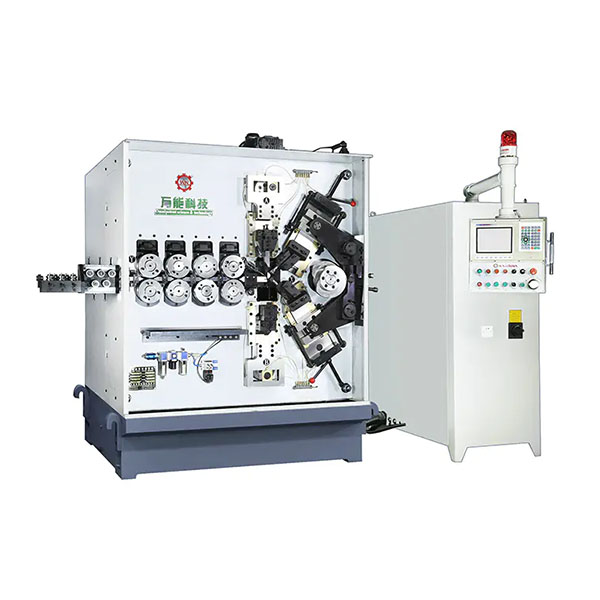

TK-580Ⅱ |
|
Number of Axes |
Five Axis (Wifc Feed,Pitd,Cam,Up-cut.Down-cut) |
|
Wire Diameter |
Φ3~Φ8 |
|
Max.Outside Diameter |
Φ120 |
|
Wire Feed Length |
No Limiution |
|
Wire Feed Speed |
80m/mim |
|
Rotation |
Left Of Right |
|
Forming Way |
Double Points |
|
Number of Wire Fe«d Axes |
4 Pairs |
|
Cam Axis Motor |
7 |
|
Pitch Axis Motor |
2.7 |
|
Wire Feed Axis Motor |
30 |
|
Up-_cut Motor |
7 |
|
Down_-cut Motor |
7 |
|
Machine Oimension (LxWitH) |
2100*1800*7200 |
|
Machine Weight |
7000 |
|
Votage |
Three Phase 380V.AC. 50HZ |
Applicable Spring
