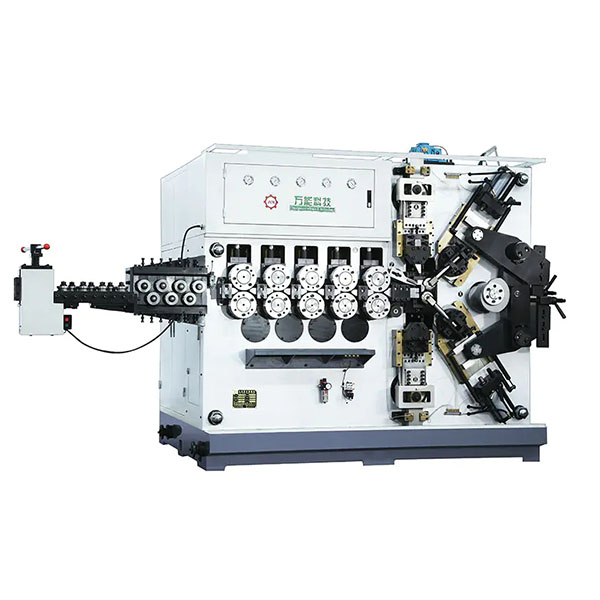

Function point
1. Controlled with five axis:wire feed axis,cam axis,up -cut blade axis,down-cut bladeaxis and pitch axis.
2. The five axis can work single-step or synchronously.
3. Computer interface displayed in Chinese and English which makes the operation easy.
4. Equipped with right or left-handed winding blade rest.
5. The cutter can perform straight cut, twist cut and swing cut.
6. The computer has software functions of automatic programming.
Mian Technique Parameter
|
Style |
TK-5200-6 |
|
Number of Axes |
Five Axis(Wire Feed,Pitch,Cam,Up-cut,Down-cut) |
|
Wire Diameter |
012-020 |
|
Max.Outside Diameter |
0260 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed |
Slow gear:31.5m/min Quick - speed file: 49m/min |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
6Pairs |
|
Cam Axis Motor |
15 |
|
Pitch Axis Motor |
7 |
|
Wire Feed Axis Motor |
55 |
|
Up-cut Motor |
30 |
|
Down-cut Motor |
30 |
|
Machine Dimension(LxWxH) |
5400x2450x2900 |
|
Machine Weight |
30000 |
|
Voltage |
Three Phase 380V.AC.50HZ |
Applicable Spring
