    MCS-20 Spring Making Machine

    Introduction：
    MCS-20 Spring Making Machine Features
    ● Rotary wire feed and rotary wire guide mechanisms provide for easy forming of complex parts without changing the position of the slides.
    ● The machine is equipped with Feed, Cam, Rotary Wire Guide and Rotary Wire Feed axes as standard. 3 optional Servo Spinner Units and 2 optional Servo Linear Units can be easily added to make the MCS-20 an 8 axis machine.
    ● You can customize MCS-20 as you wish with numerous optional accessories. (Slide Base and Cam Shaft (8sets), Cut Holder (1pc.), Tool Holder A (1pc.), Tool Holder B (1pc.) are equipped as standard.)
    ● The slides can be installed at any angle around the circular table. (patented)
    ● The slide layout can be changed simply by altering the mounting position on the slide base for tool holders and servo drive unit.
    ● Maximum slide stroke is 67mm. This MCS-20 machine provides wide space around the wire guide enhancing forming capability.
    ● Twin Cams are available for higher speed production. (1 set of Retractable Lever and Twin Cam for Cut axis is equipped as standard.)
    ● All tools, cams, tool holders and attachment items are compatible with those of AX-20 machine.
    ● The Image sensor can be installed on the latest computer as an option.

    GET A QUOTE

    Product Description

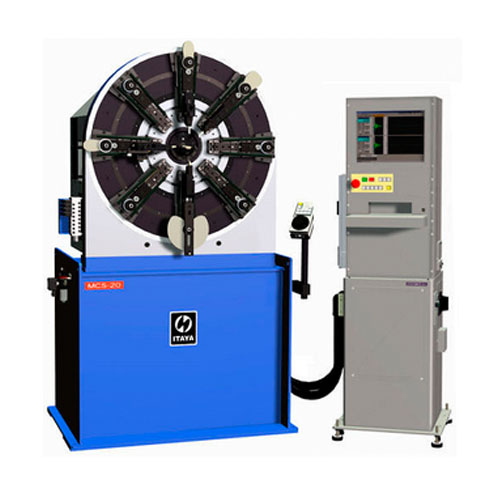

    MCS-20 Spring Making Machine
    Computer Controlled Spring Making Machine
    Our best selling spring making machine series, MCS, is now equipped with the latest Rotary Wire Feed.

    With a rich source of options available, you can optimize this machine to suit your needs.
    MCS-20 Spring Making Machine
    MCS-20 Spring Making Machine Features
    ● Rotary wire feed and rotary wire guide mechanisms provide for easy forming of complex parts without changing the position of the slides.
    ● The machine is equipped with Feed, Cam, Rotary Wire Guide and Rotary Wire Feed axes as standard. 3 optional Servo Spinner Units and 2 optional Servo Linear Units can be easily added to make the MCS-20 an 8 axis machine.
    ● You can customize MCS-20 as you wish with numerous optional accessories. (Slide Base and Cam Shaft (8sets), Cut Holder (1pc.), Tool Holder A (1pc.), Tool Holder B (1pc.) are equipped as standard.)
    ● The slides can be installed at any angle around the circular table. (patented)
    ● The slide layout can be changed simply by altering the mounting position on the slide base for tool holders and servo drive unit.
    ● Maximum slide stroke is 67mm. This MCS-20 machine provides wide space around the wire guide enhancing forming capability.
    ● Twin Cams are available for higher speed production. (1 set of Retractable Lever and Twin Cam for Cut axis is equipped as standard.)
    ● All tools, cams, tool holders and attachment items are compatible with those of AX-20 machine.
    ● The Image sensor can be installed on the latest computer as an option.

    Main Technical Data
        MCS-20
    Forming Capability Wire Diameter 0.5-2.0mm
    Pneumatic Solenoid Valve   4pcs.
    Peripheral Device Control   12ports
    Power Requirements 3 Phase 30A
    Machine Dimensions Height 1880mm
    Width 1080mm
    Depth 1300mm
    Weight 1540kg
    Computer Dimensions Height 1600mm
    Width 540mm
    Depth 540mm
    Weight 210kg
    Installation Area Width 1825mm
    Depth 2300mm


    Servomotor Features
        MCS-20
    Feed Min. Increment 0.02mm
    Motor Rated Output 2000W
    Cam Min. Increment 0.05deg.
    Motor Rated Output 2600W
    Rotary Wire Feed Min. Increment 0.1deg.
    Motor Rated Output 5000W
    Rotary Wire Guide Min. Increment 0.1 deg.
    Motor Rated Output 400W
    Spinner (optional) Min. Increment 0.001deg.
    Motor Rated Output 400W
    Linear (optional) Min. Increment 0.01deg.
    Motor Rated Output 400W


    Computer Specifcation
    CPU Pentium Processor
    Program 2000 Steps
    Program Storage USB flash memory & 3.5 inch FDD
    Display 15 inch TFT Color LC Display
    Operating Temp 0 – 45 degree
