    GT CNC Spring Coiling Machine

    Introduction：
    CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.
    It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 2-5 axis with spinner upon request

    GET A QUOTE

    Product Introduction

    CNC spring coiling machine is to produce compression springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with high quality controller.

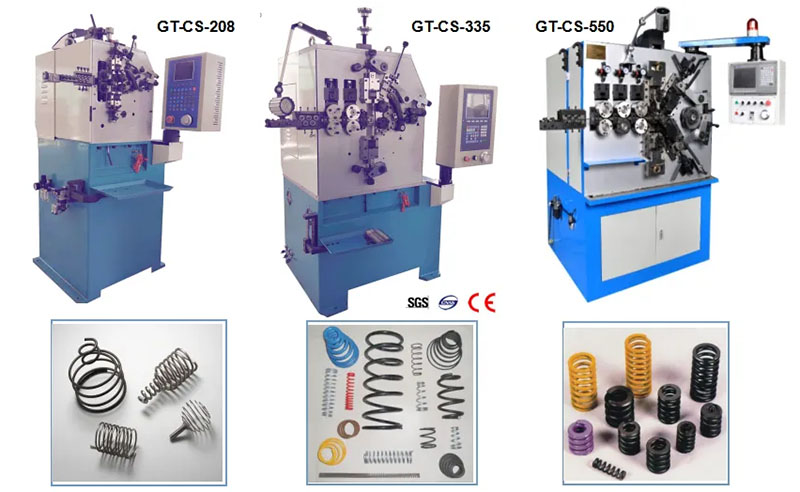

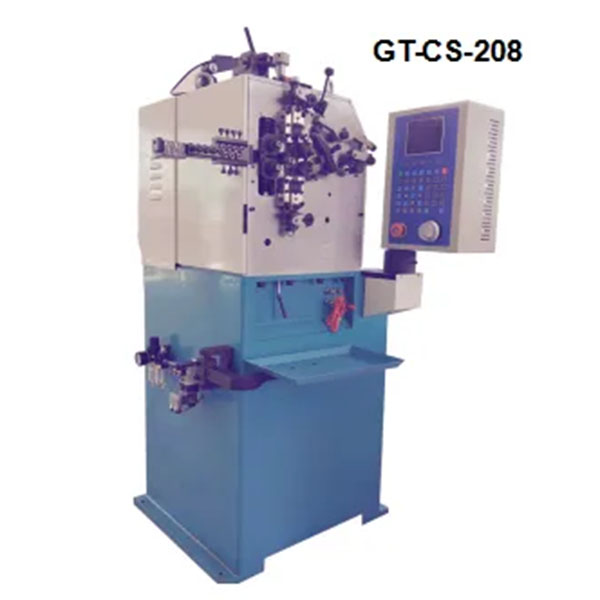

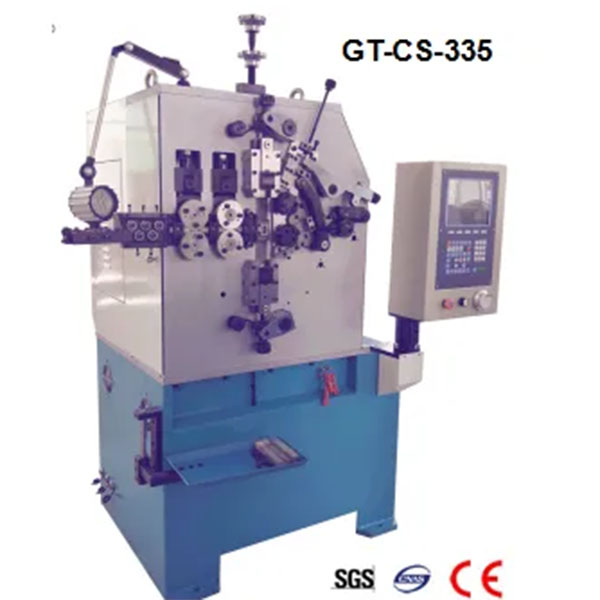

    Model 型号 GT-CS-208 GT-CS-220 GT-CS-335 GT-CS-550 GT-CS-580
    Wire size(mm) 0.2-1.0 0.5-2.0 0.8-3.5 2.0-5.0 3.0-8.0
          Max. outer dia. 20mm 50mm 50mm 60mm 50mm
    Axes 2 2 3 5 5
         Feeding length Unlimited Unlimited Unlimited Unlimited Unlimited
    Wire feed speed 0.-100M/min 0-110M/min 0-120M/min 0-120M/min 0-120M/min
    Production rate 0-500pcs/min 0-300pcs/min 0-130pcs/min 0-150pcs/min 0-100pcs/min
    Wire feed Servo Motor 1.0kw 2.7kw 5.5kw 15.0kw 30.0kw
    Cam Servo motor 1.0kw 2.7kw 5.5kw 4.5kw 7.0kw
    Pitch(Quill)motor / / 1.0kw 2.7kw 2.7kw
    Top cut motor / / / 4.5kw 7.0kw
    Bottom cut motor / / / 4.5kw 7.0kw
    Size(L*W*H) 870X800X1600 1000x920x1700 1100x920x1700 1500x1300x1900 2200x1700x2400
    Weigh 350.0KG 800.0KG 1200.0KG 3500.0kg 7500.0kg

    Spring coiling machine is commonly known as spring machine, which refers to mechanical equipment that produces springs. According to the functional characteristics, it is divided into: compression spring machine, tension spring machine, universal machine, disc machine and special spring machine such as snake spring machine and torsion spring machine. According to the driving mode, it is divided into: semi-automatic, automatic, and numerical control.
