PRODUCT DETAIL
Product Range

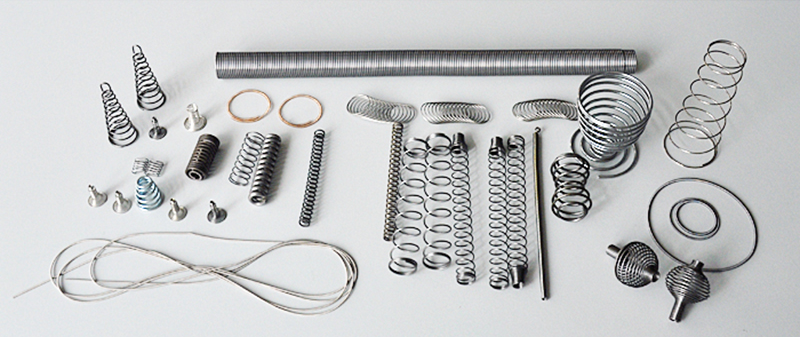

This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forms.
Specification
| Model: | CSM-208CNC |
| Wire diameter: | φ0.1～0.80mm（Min wire to 0.07mm，according to specific product） |
| Axes: | 2 axes |
| Maximum Outside Diameter: | 20mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed: | 300m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 1.0kw |
| Cam Servo Motor: | 1.0kw |
| Power AC: | 3-Phase 220v |
| Dimension (L*D*H): | 900X850X1600mm |
| Wooden Case Dimension: | 1000x1050x1750mm |
| Machine Weight: | 400kg |
| Gross Weight: | 450kg |
