Product Advantage
1、Free arm technology.
2、Windows screen operation.
3、Servo driven free arm technology that allows a forming blade to move freely on an X,Y plane.
4、Intuitive graphics user interface is based on Windows and its crash free characteristic is due to the employment of a bulletproof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
5、Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades.
Technical Parameters

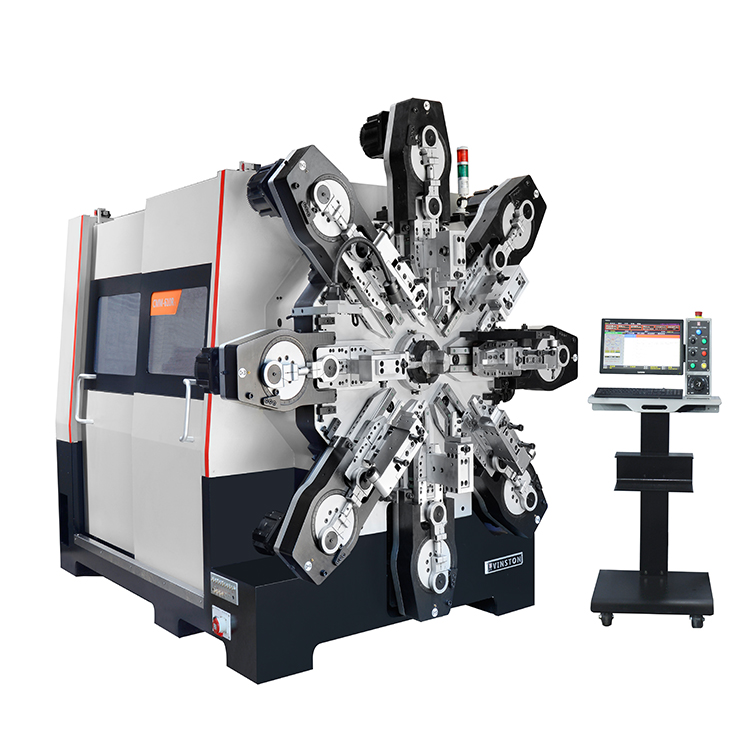

| MODEL | CMM-12-610R | |
| Wire Dia. | 2.8-6.0mm | |
| Max. Wire Feed | 10000.00mm | |
| Min. Wire Feed | 0.01mm | |
| Total Output Torque | 4036N | |
| Max. Wire Feed Length | Unlimited | |
| Number Of Axes | 12 Axis(Spinner included) | |
| Power | 60.4 KW | |
| Voltage | 220V(Customizable) | |
| Software | Industrial | |
| Program Storage | 2500 | |
| Voltage Regulator Power | 30KW | |
| Air Compresser System | Air pressure | 5-6KG/cm |
| Air cylinder | 3pcs | |
| Dimensions | Depth | 3470mm |
| Width | 2200mm | |
| Height | 2320mm | |
| Machine Weight | 8700KG | |

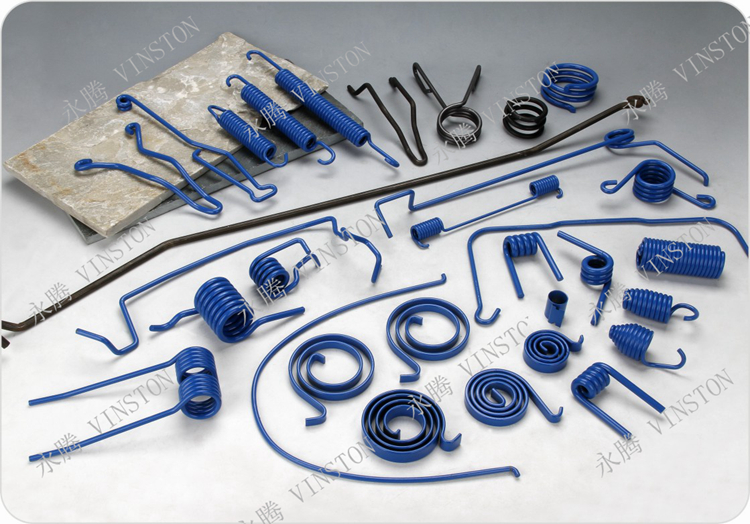

Sample Display
Fair And Client
Success Cases
