Function point

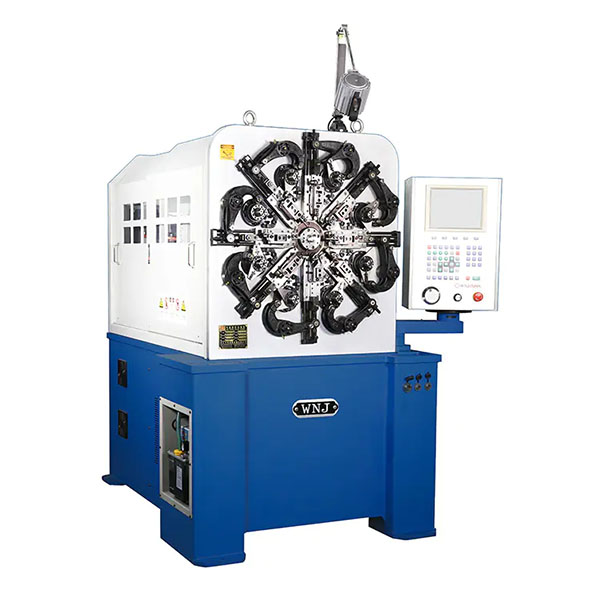

1. This machine is for camdesign,set up spring with high speed and accuracy,good stability.
2. Adopts Taiwan' s computer control system and equipped with servomotor imported from Japan.
3. wire feed with the function of rotary wire, so it is easy to adjust.
4.Computer interface displayed in Chinese and English which makes the operation easy.
5.It is suitable for for producing double torsional spring , straight spring, pagoda-shape pull the compression spring , rectangle spring, swirl spring and other different spring and special -shape spring etc.
Mian Technique Parameter
|
Style |
CNC-625Z |
|
Wire Diameter |
Φ0.3-Φ2.5 |
|
Total Power |
6.8 |
|
Number of Axes |
5 Axis |
|
Number of Wire Feed Axes |
2 Pairs |
|
Wire Feed Servo Motor |
2.7KW |
|
Rotary Wire Servo Motor |
2.7KW |
|
Rotary Mandrel Servo Motor |
1KW |
|
Curved Shaft Servo Motor |
0.4KW |
|
Cam Axis Servo Motor |
2.7KW |
|
Machine Dimension(LxWxH) |
1700x1500x1650 |
|
Machine Weight |
1500 |
|
Voltage |
3AC380V/50HZ |
Applicable Spring
