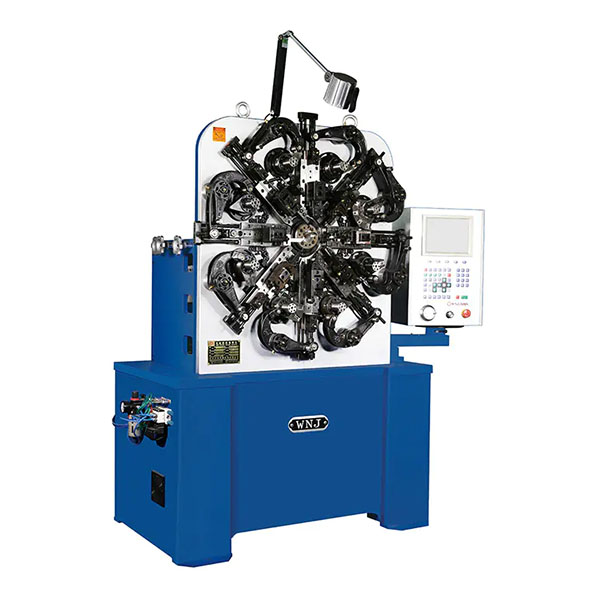

Function and characteristics
1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan.
2. A precious inspection tracer device is installed,it will stop working automatically when the unqualified product is found.
3. The parameters ( major diameter,angle, etc.) can be modified at any time according to the working status displayed on the fluorescence screen.
4.It is suitable for producing double torsion spring,straight spring,pagoda-shaped compression spring, rectangle spring,swirl spring,special-shaped spring and etc.
Mian Technique Parameter
|
Style |
CNC-625A/B Ⅲ |
|
Wire Diameter |
Φ0.3~Φ2.5 |
|
Max.Outside Diameter |
Φ50 |
|
Instrution Value of Wire Feed |
±0.01~ ±9999.99 |
|
Instrution Value of Cam |
±0.1°~±359.9° |
|
Savable System |
99Groups |
|
Motor Power |
X-Y Axis2.7 Z Axis1.0 |
|
Machine Weight |
800 |
|
Voltage |
Three Phase 380V.AC.50HZ |
|
Machine Dimension(LxWxH) |
1630x880x1980mm |
Applicable Spring
