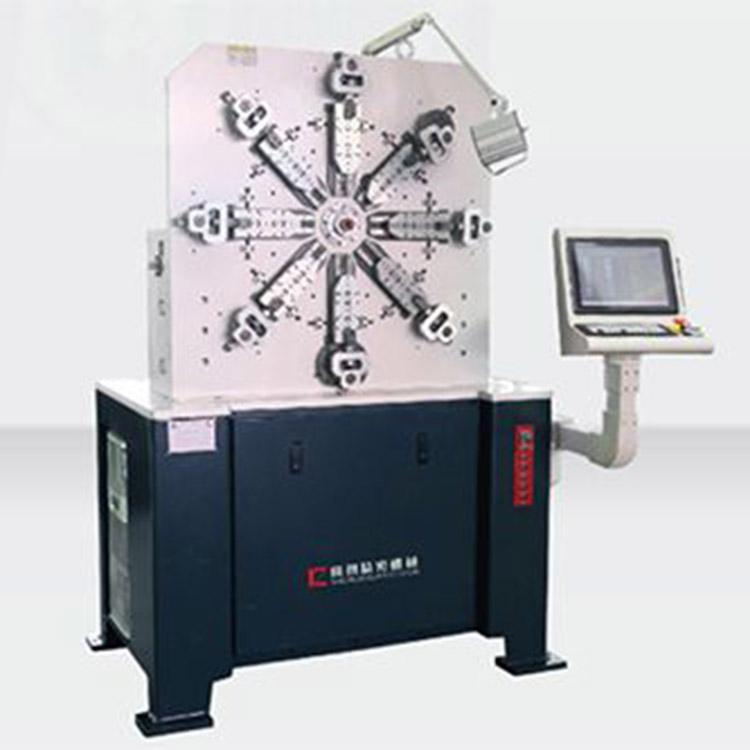

    10-Axis CNC Spring Making Machine

    Introduction：
    KTC-1020WZ 10 axis camless CNC spring forming machine which is upgraded based on our traditional 3 axis cam type spring former. With wire size range of ⌀0.2-2.0mm, the spring manufacturing machine is suitable for the production of a variety of precision compression springs, tension springs, torsion springs, scroll flat-section springs, tower springs, flat springs, shaped springs and wire forms, etc.

    GET A QUOTE



    Specifications


    Model KCT-1020WZ
    Number of Axes 10
    Wire Diameter Φ0.2-2.0mm
    Max. Wire Feed Speed 120m/min
    Spring Index 3
    Feed Roller Group 2 Groups
    Feed Servo Motor 2.9kW
    Quill Servo Motor 1.0kW
    Former Servo Motor 0.85kW *8
    Spinner Servo Motor 0.4kW

    Air Compressor System    		 Air Pressure 0.2-0.4Pa
    Air Cylinder 5
    Probe 5
    Power 3P/380V 50/60Hz
    Dimension (L*W*H) 1500*1160*1800mm
    Weight 1500kg

    Features

    • Max. 16 axes
    • All axes work independently.
    • Linux system
    • Japanese servo motor
    • Remote monitoring
    • USB port
    • Optional servo spinner
    • Optional servo cutter
