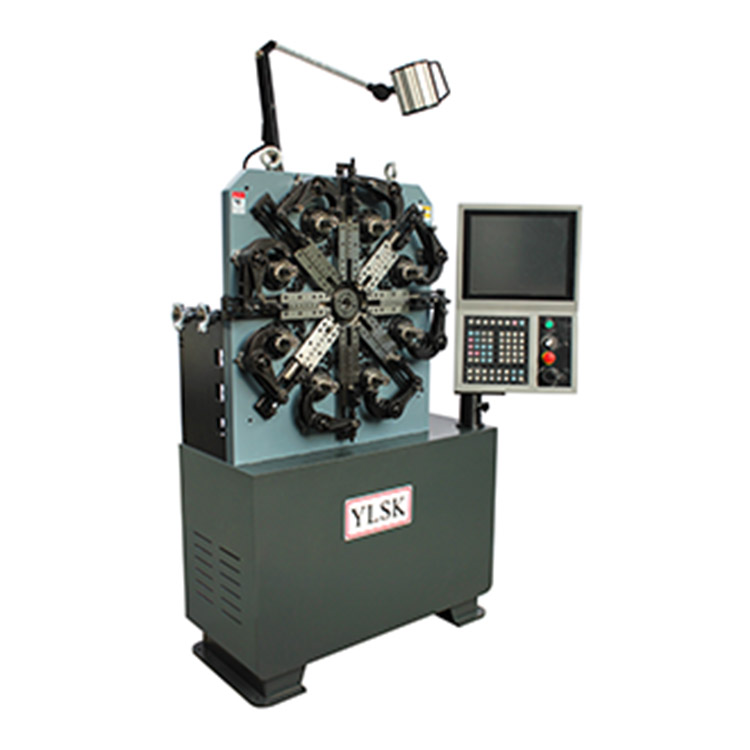

    YLSK-20/25 Universal Wire Forming Machine

    Introduction：
    YLSK-20 wire feeding system is horizontally installed with two pairs of wire feeding rollers on the back side of machine. Wire feeding precision is about 0.01mm.

    GET A QUOTE

    Product Details

    YLSK-20 wire feeding system is horizontally installed with two pairs of wire feeding rollers on the back side of machine. Wire feeding precision is about 0.01mm.
    YLSK-25 is upgraded version of YLSK-20 Machine. The wire feeding mechanism changed into integrated design which  improves wire feeding accuracy. Wire feeding force is 1.5 times more than the YLSK-20 Machine, which is the best choice for the customers who have higher precision requirement. 4-Axis divided into Cam, Mandrel, Wire Feed & Spinner.
    Features: Wear resistant Feed Rollers, low noise, less vibrations, High synchronization accuracy with control system & wire feed,
    Applications: Automobile, Toys, Home appliances, Electronic, Sports equipment, Agricultural and many other industries.


    TECHINICAL PARAMETER


    Model YLSK-20/25
    Wire diameter (mm) Ø0.2～Ø2.5
    Axis Count 3 Axis
    Max feeding Length Unlimited
    Program Storage 2000 Max
    Instruction value of wire feed ±0.01～±9999.99mm
    Instruction value of cam ±0.10～±359.90
    Servo motor of wire feed (kw) 2.7
    Servo motor of cam (kw) 2.7
    Servo motor of Quill Z-axis (kw) 1
    Machine size(mm)  1400×800×1700
    Weight (Kg) 850
    power 380V 3-Phase

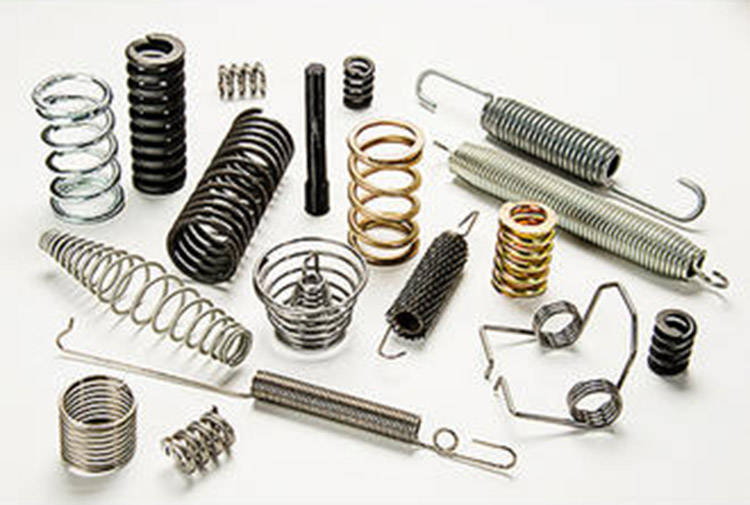

    Sample Display
