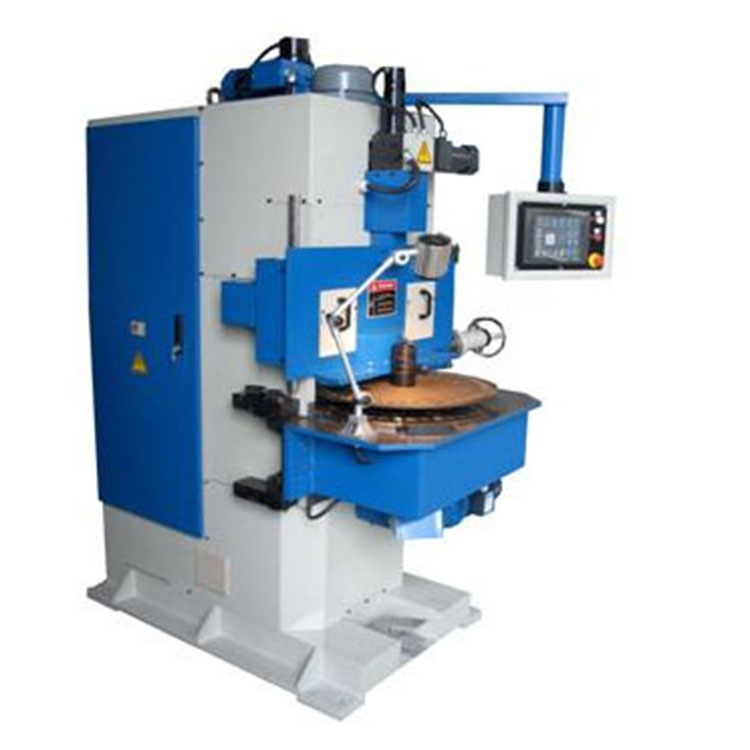

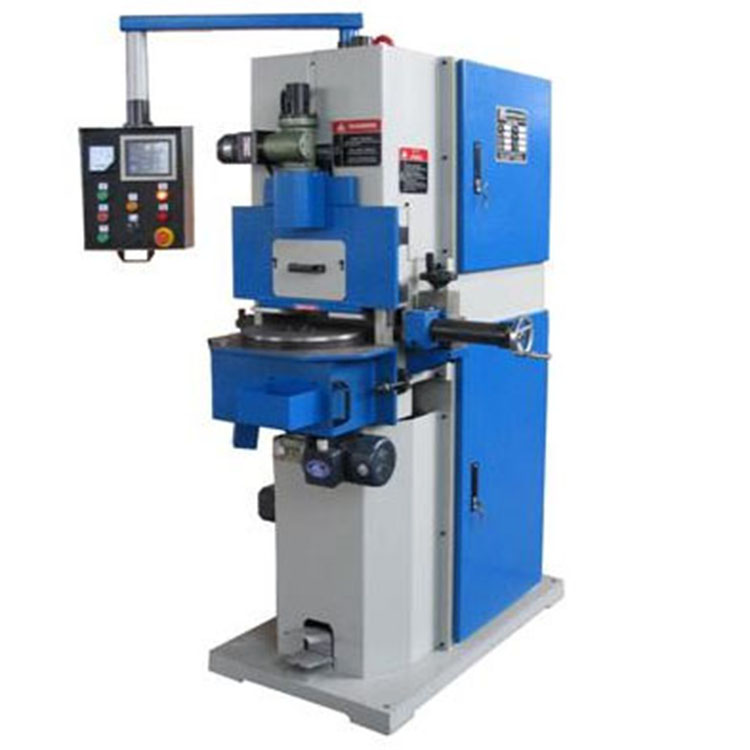

    XDM-E180-6 Spring Grinding Machine

    Introduction：
    Introduction：
    Vertical double surface grinding machine with CNC control.
    This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
    Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
    Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
    For replacing is very suitable for high-precision grinding proposal.

    GET A QUOTE

    Details

    Vertical double surface grinding machine with  CNC control.
    This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
    Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
    Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
    For replacing is very suitable  for high-precision grinding proposal.



    Technical Parameter


    Gringding Wheel

    Ф400*50mm

    Feeding Plate

    Ф580mm

    MAX.O.D

    Ф5-80mm

    Wire Diameter

    Ф 0.8-6mm

    Spring Height

    5-180mm

    Power

    9KW

    Overall Dimension

    L1600*W1500*H2300

    Weight

    2000KG



    Manufacturability
