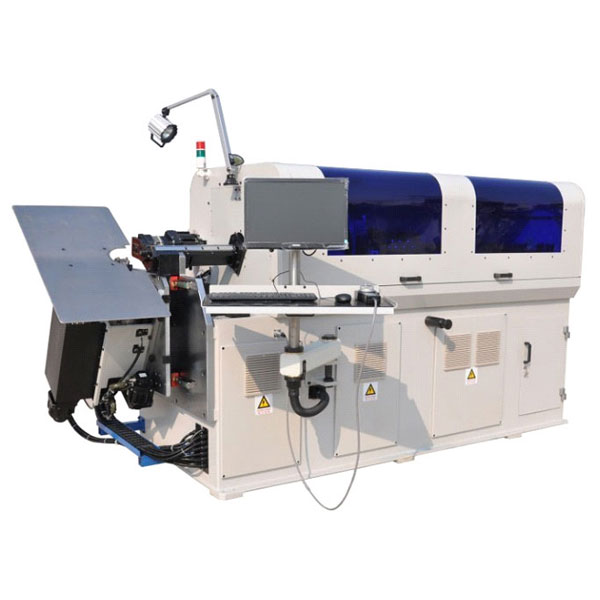

XD-WF608 Wire Forming Machine

Introduction：
XD-WF608Wire Bending Machine, the coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.

GET A QUOTE

PRODUCTS

Spring Machine

Spring Coilers

Compression Spring Machine

Extension Spring Machine

Wire Forming Machine

Wire Bending Machine

Camless Spring Machine

Automatic Wire Feeder Machine

Spring End Grinding Machines

Spring Temper Furnace

Spring Machine Controller

Tube-coilers

Wire-straighteners

Spring Machine Toolings

DETAILS

Product Advantage

XD-WF608Wire Bending Machine, The coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
3. Optional accessories: bending tools, rolling axis, safety door.
XD-WF608 Wire Forming Machine

Technical Parameters

Model:	XD-WF608
Wire diameter:	Ø2.0-6.0mm（soft wire） Ø2.0-4.0mm（hard wire）
Max. wire feeding speed:	54m/min
Dimensions (LDH):	3333×2035×1620mm
Machine Weight:	3000KG
Distance between the bending head and machine body:	594mm

Axes Feature

Bending (inside):	1.3KW
Bending (outside):	1.3KW
Bending(U/D):	1.3KW
Bending(L/R):	1.3KW
Cutting axis:	1.3KW
Support table U/D axis:	0.85KW
Wire Feed axis:	3.0KW
Rotating Wire axis:	3.0KW

Sample Display

This CNC spring machine produce various ultra-precision irregular springs, compression springs, flat line(spiral power spring)and line molding spring etc.
wire forming machine samples
