Product Details

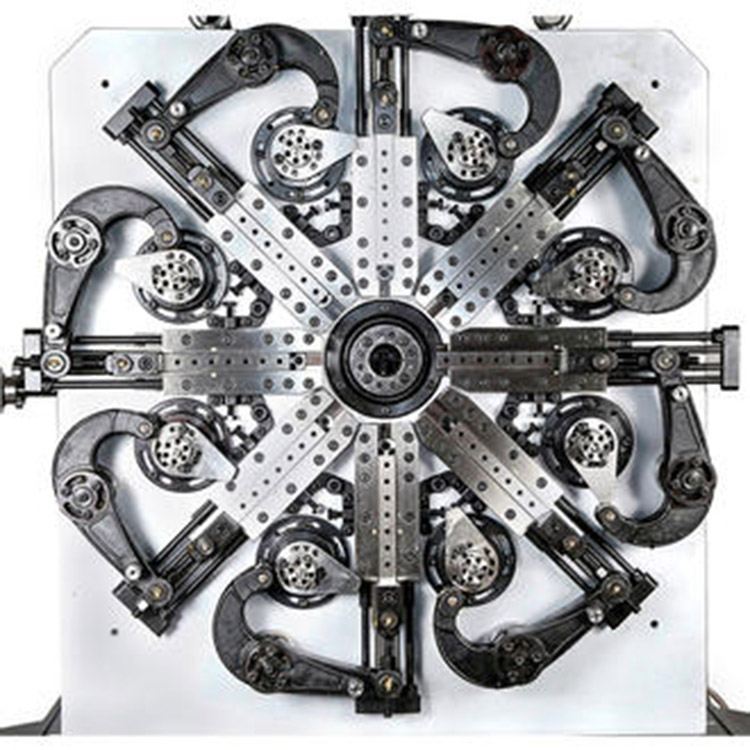

YLSK-35/40/45 Universal Spring Forming Machine divided into Cam, Quill, Wire Feeder & Spinners, Synchronous operation. Equipped with Taiwan computer control and Japanese servo motors.

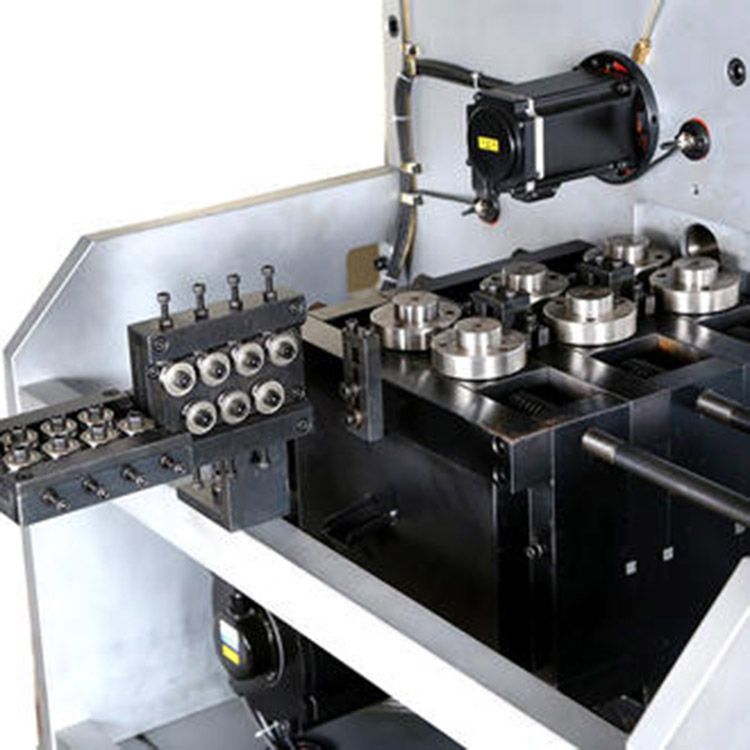

Three pairs of wire feeding rollers provides more accuracy, which is Vertically mounted in YLSK-40, 45 and Horizontally on YLSK-35. The coiling device (Spinner) is mounted on slide, provides clockwise and anticlockwise rotation for Making springs.
The position of each axis, the length of wire, Production speed, production quantity are all displayed on the screen. Online programming and debugging is convenient.
Applications: Various types of Compression springs, Tension spring, Torsion spring, Conical springs, Flat springs and other special shaped spring. Application industries, Automobile, Electrics, Toys, Home appliances, Sports equipment, and many more.
>TECHINICAL PARAMETER
| Model | YLSK-35 | YLSK-40 | YLSK-45 |
| (mm) Wire Diameter | Ø0.8～Ø3.5 | Ø0.8～Ø4.0 | Ø0.8～Ø4.5 |
| Axis Count | 3-5 Axis | 3-5 Axis | 3-5 Axis |
| Max Feeding Length | Unlimited | Unlimited | Unlimited |
| Programme Count | 2000 Max | 2000 Max | 2000 Max |
| Instruction value of wire feed | ±0.01～±9999.99mm | ±0.01～±9999.99mm | ±0.01～±9999.99mm |
| Instruction value of Cam | ±0.10～±359.90 | ±0.10～±359.90 | ±0.10～±359.90 |
| Servo motor of wire feed (kw) | 5.5 | 5.5 | 7.5 |
| Servo motor of cam (kw) | 5.5 | 5.5 | 7.5 |
| Servo motor of z-axis servo (kw) | 1 | 1 | 1 |
| Machine size (mm) | 1700×1000×1900 | 1700×1000×1900 | 1700x1000x1900 |
| Weight (kg) | 1800 | 1900 | 2000 |
| Power | 380V 3-Phase | 380V 3-Phase | 380V 3-Phase |
Detail

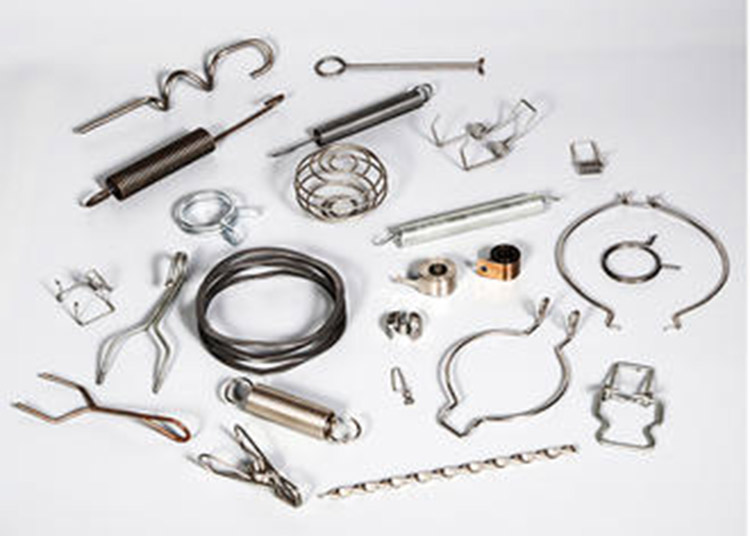

Sample Display
