PRODUCT DETAIL

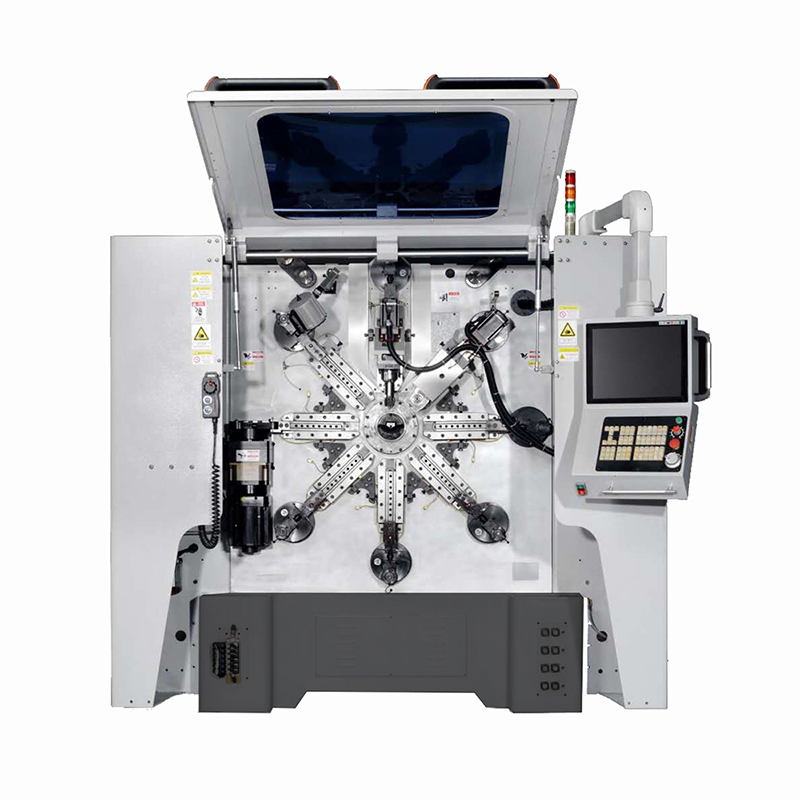

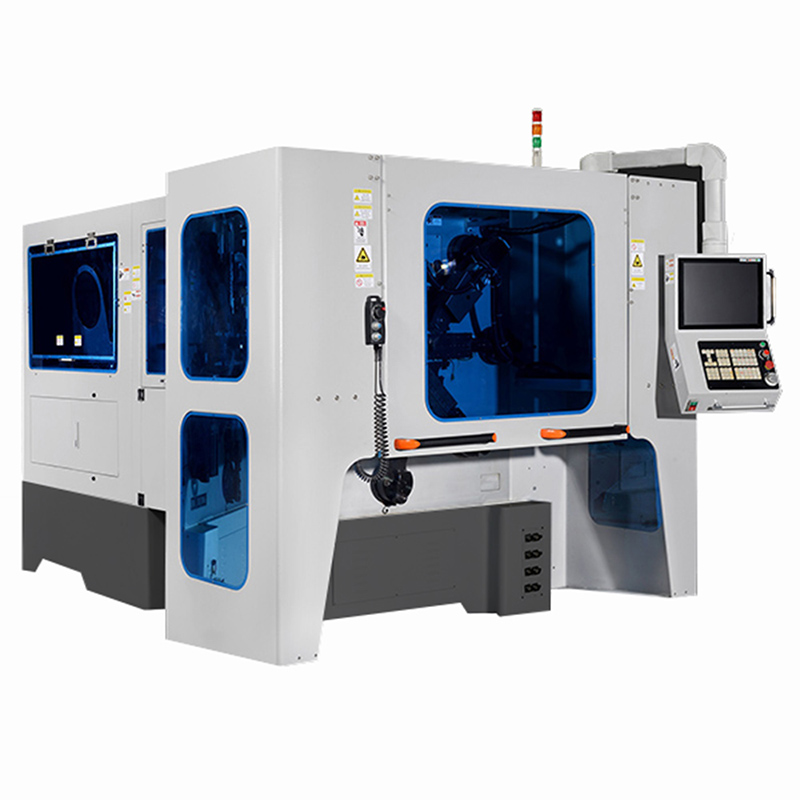

| Model: | CFM-1480 (Standard 14 axes,up to 16 axes) |
| Wire Diameter: | 4.0-8.0mm |
| Max. Wire Feed Speed: | 60-80m/min |
| Max. Wire Feed Length: | Unlimited |
| Axes Number: | 14 axes |
| Total Power: | 65kw |
| Input Voltage: | 3 Phrase， 220V |
| Program Data Storage: | More than 999pcs |
| Max. Wire Feeding Instructions: | 99999.99mm |
| Min. Wire Feeding Instructions: | 0.01mm |
| Dimensions: | L*W*H 4250*2200*2600mm(length include cantilever box) |
| Machine Weight: | About 8500KG |
| Decoiler Load Weight： | 1000 KG |
Main features
1. The standard 14 sets of servos include wire feeding, wire transfer, core rotation, servo slider, etc., which can be expanded to 16 axes at most,
Maximize full servo operation

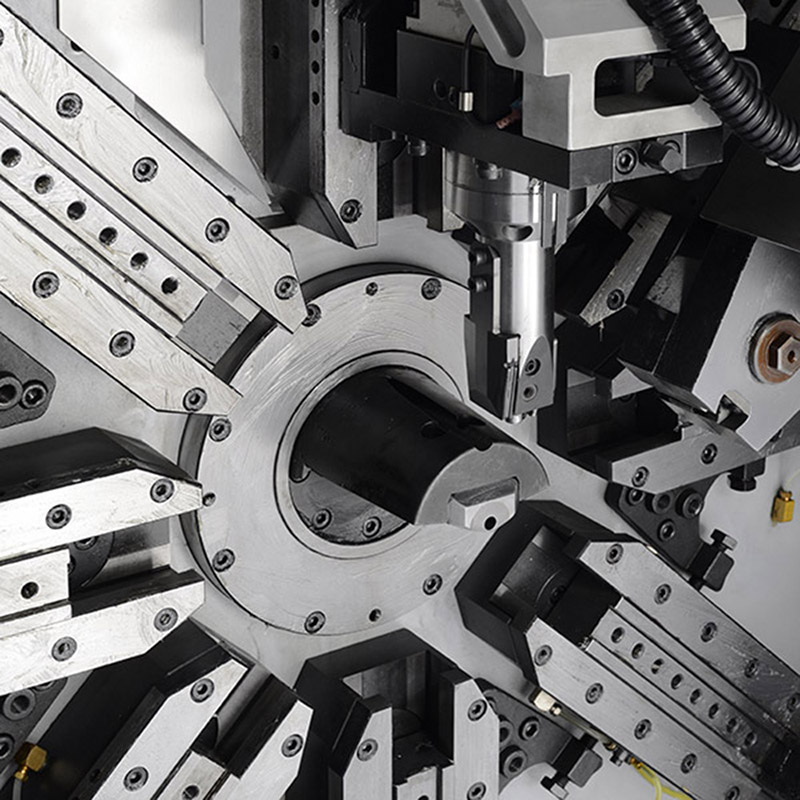

2. The six-degree-of-freedom central drive device can realize wire forming actions such as bending, winding, pushing, and corner folding in the simplest way
3. The flexible optional servo slide can be used with servo scissors, single-winding curling, double-winding curling and any other tooling required for forming actions
4. Standard eight sets of pneumatic control points, four sets of probe points, can also be matched with laser probes
5. The standard universal tool holder can be used with other equipment of our company, saving unnecessary expenses to the greatest extent
6. The brand-new operating system can realize the quick setting of the forming program and the convenient and quick teaching and programming!
Advantage
◆The cutting unit with independent servo motor control is compact and powerful.
◆Using high-quality cold-worked alloy steel as the knife edge, the regular life is more than 50,000 times.
◆It can produce torsion spring, tension spring and wire bending forming operation system easy to use and reliable;
