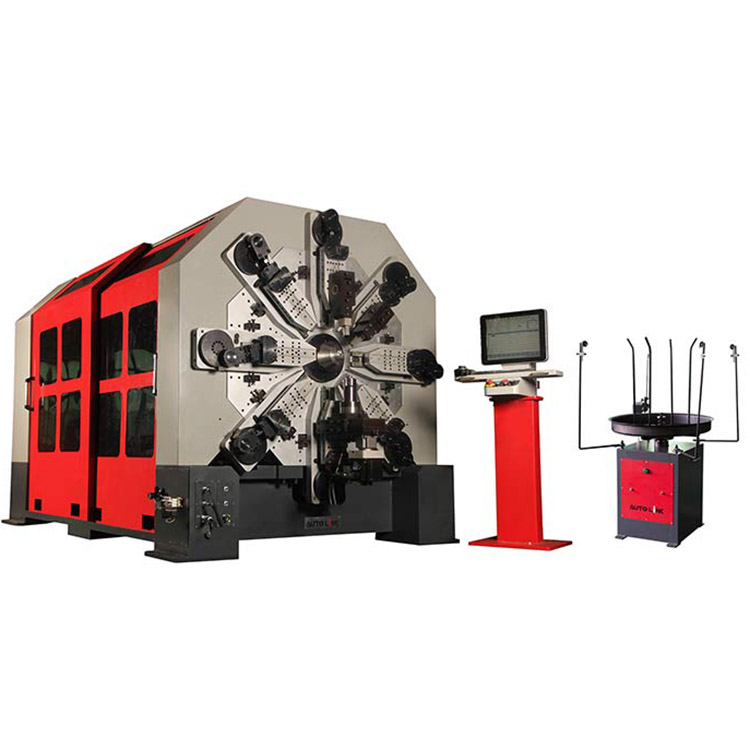

    12/14 AXIS CNC WIRE FORMING MACHINE

    Introduction：
    The camless 12axis cnc wire forming machineis a versatile solution for a range of applications. The rotary capability of the machine enables the use of multiple tools at once, resulting in improved efficiency. This machine streamlines the design and production of both simple and complex wire forms, driving a drastic increase in production rate. Its exceptional performance in spring forming is especially noteworthy, as it can effortlessly produce intricate wire bends and shapes.

    GET A QUOTE

    Introduction


    The camless 12axis cnc wire forming machineis a versatile solution for a range of applications. The rotary capability of the machine enables the use of multiple tools at once, resulting in improved efficiency. This machine streamlines the design and production of both simple and complex wire forms, driving a drastic increase in production rate. Its exceptional performance in spring forming is especially noteworthy, as it can effortlessly produce intricate wire bends and shapes.
    Auto Link Technology specializes in producing complex spring shapes, such as compression, extension, and tension springs, all crafted to meet customer specifications.
    The CNC Wire Forming Machine camless design with 8 motors and 8 arms, making it more efficient than other models. The machine takes user input and the wire is loaded into a decoiler unit with a capacity ranging from 150kg to 1000kg. With 12/14 axis capabilities, this automatic machine is suitable for a wide range of applications. The wire rotary model enhances production speed, reducing overall production time. Bending, holding, punching, softening, or quilling processes are customized to meet customer needs, and the CNC program is adjusted to fit industrial requirements. For simple wire bending or forming, the machine can be configured with fewer axes.

    PARAMETERS


    Model WF-1225R
    Wire Diameter 0.5-2.5mm
    Axis 12-14
    Max.Wire Feed Value 9999.99mm
    Min.Wire Feed Value 0.01mm
    Max.Wire Feed Speed 100000 mm/min
    Slide Axis(Optional) 8*1.2KW
    Quill Rotary Axis 1*0.4KW
    Wire Rotary Axis 1*2.0KW
    Wire Feeding Axis 1*2.7KW
    Spinner Axis 0.4KW
    Free Arm Axis(Optional) 0.4KW
    Compressor Air Pressure 5-6kg/cm
    Probe 4pcs
    Dimension(M) 1.7*1.5*1.7
    Weight 1500kg


    Input Materials

    Stainless Steel, Aluminum, Brass, Bronze, Carbon Steel, Cold-Rolled Steel, Copper, Nickel, Titanium, etc. Then the input wire ranges from 0.5mm to 6.5mm in diameter.

    Applications

    • Manufacturing of automotive parts: seat frames, door locks, and springs.
    • Production of wire baskets and shelves: create wire baskets and shelves
    • Medical equipment: orthopedic implants, surgical instruments, and dental devices.
    • Electrical industry: electrical components, such as circuit breakers, connectors, and switches.
    • Consumer products: wire hangers.
