Introduction

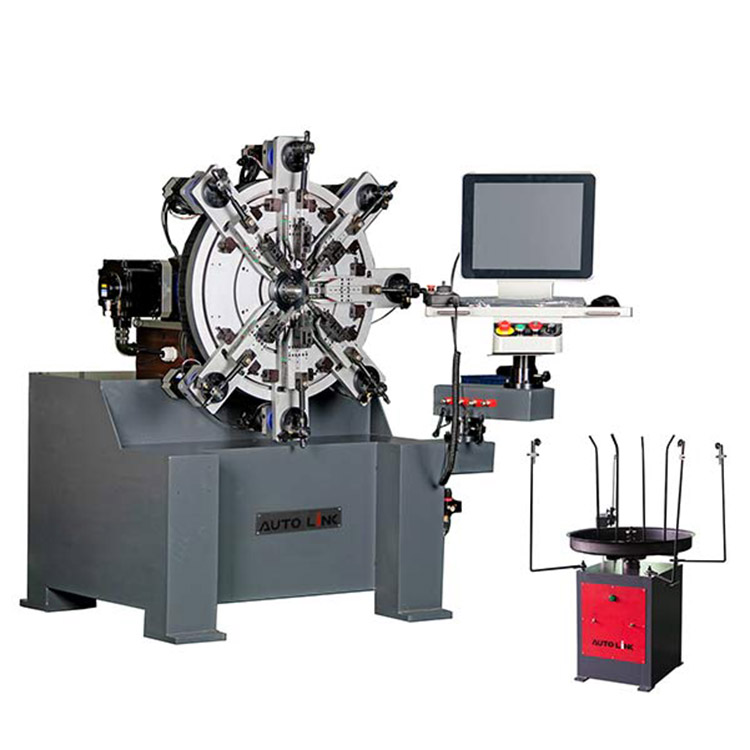

The CNC 10-axis wire forming machine is a versatile tool that is designed to help you design and develop simple output forms. Despite not having rotary capabilities, the machine is still capable of connecting with limited tools, ensuring efficient operation. This machine is suitable for industrial use, as it can produce springs and wire forms at a high rate of production. The manufacturing of CNC machines is based on customer standards, ensuring that your needs are met. The forming machine is particularly good at creating simple shapes for multi-axis springs, including compression, extension, torsion, tension, and tower springs. Whether you're looking to produce springs for your business or personal use, theis the perfect tool to help you get the job done quickly and efficiently.
The CNC wire-forming machine is a highly efficient tool that can be used to produce a variety of springs and wire forms. The machine begins by receiving the input material through the decoiler unit, which has a capacity of 150kg. The CNC 10-axis wire-forming machine material is then sent to the straightening section where it is straightened, before proceeding to the feeder roller and onto the quill axis. The wire then undergoes the wire-forming process, which includes bending, folding, quilling, and softening if necessary. The specific tools and processes used in the wire-forming process vary based on customer requirements. The machine uses a bending tool as per the requirement, and finally, the output formation takes place. If rotary action is required for 10 or more axes, the 12-axis wire-forming machine is used. This machine is designed to meet the demands of the industrial world, with the ability to produce springs and wire forms at a high rate of production.
PARAMETERS
| Model | WF-1025 |
| Wire Diameter | 0.5 – 2.5 mm |
| Axis | 10-11 |
| Max.Wire Feed Value | 9999.99 mm |
| Min.Wire Feed Value | 0.01 mm |
| Max.Wire Feed Speed | 100000 mm |
| Slide Axis （with brake) | 7*0.75 kw |
| Rotary Quill Axis | 1*0.4 kw |
| Wire Feeding Axis | 1 * 2.7 KW |
| Spinner Axis | 0.4 Kw |
| Free Arm Axis (Optional) | 0.4 Kw |
| Probe | 4Pc |
| Air Compressor | 5-6Kg/cm |
| Dimension(M) | 1.4*1.1*1.7mm |
| Machine Weight | 1100kgs |
Input Materials
Applications
- Production of wire baskets and shelves: create wire baskets and shelves.
- Manufacturing of automotive parts: seat frames, door locks, and springs.
- Medical equipment: orthopedic implants, surgical instruments, and dental devices.
- Electrical industry: electrical components, such as circuit breakers, connectors, and switches.
- Consumer products: wire hangers, coat racks, and jewelry.
