Product Advantage
1. Integrated design of cutters which are directly controlled by CNC.
2. Fieldbus controller, with fast reaction speed and good synchronism.
3.Quick tooling changeover speed of left and right hand spring.
4. Arbor move back and forth, up and down.
5. Max speed reaches 700pcs/min.
6. Compared with traditional two axis coiler, it has much faster operation and set-up speed.

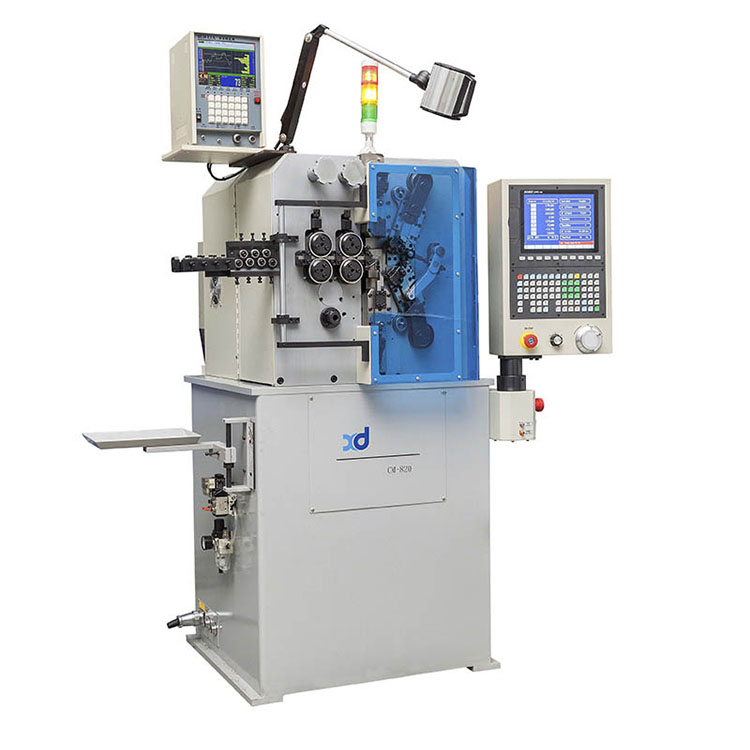

7. Safety shield and spring length gauge available with the machine.
Technical Parameters

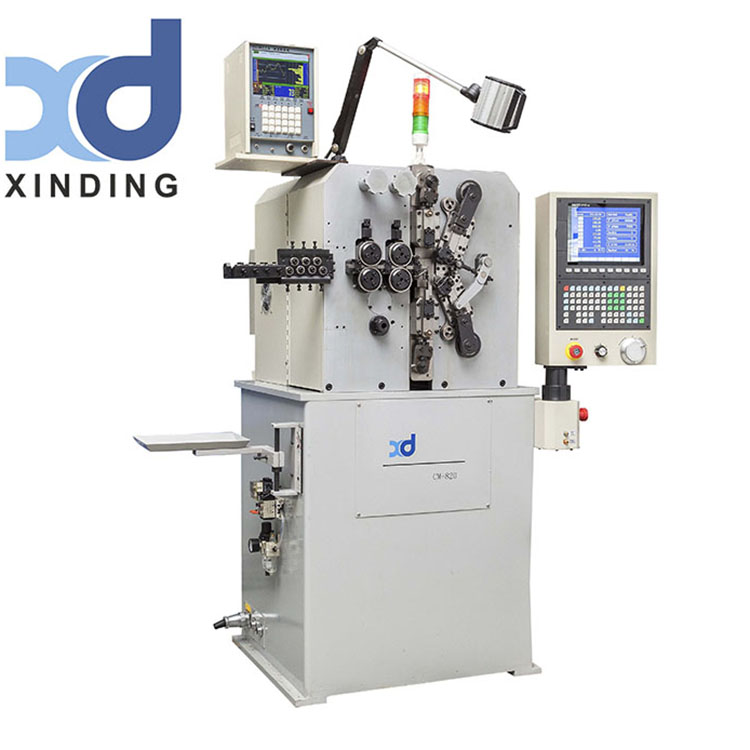

| Model: | XD-820 |
| Wire diameter: | 0.5-2.0 mm |
| O.D: | ￠45mm |
| Production Rate: | 300-700 pcs/min |
| Feed Length: | unlimited |
| Wire Feed: | 2.7 kw |
| Cutter: | 1 kw*2 |
| OD Axis: | 1kw |
| Pitch: | 1 kw |
| Arbor back-and-forth: | 0.4kw |
| Monitor Display: | Chinese/English |
| Max. Value: | 99999.99mm |
| Min.Value: | 0.5 mm |
| Memory: |
150 Program Max 999 Lines for each program |
| Machine Dimension: | 110*900*165cm |
| Machine Weight: | 1100kgs |
| Power: | 380v 3p 50/60h |
Sample Display
Product Details
1. Use servo control system to save energy 30-50 %.
2. repeatable positioning accuracy up to±0.01mm.
3. Low failure rate,automatic alarm and fault indication,one-button reset function.
4. Adopting an integral frame structure, high strength, low distortion and durability.
5. Innovative design of great flexibility.
6. Patented and innovative time-line-basis spring program software.
Use of famous brand components, ensures the stability of spring forming control system.
