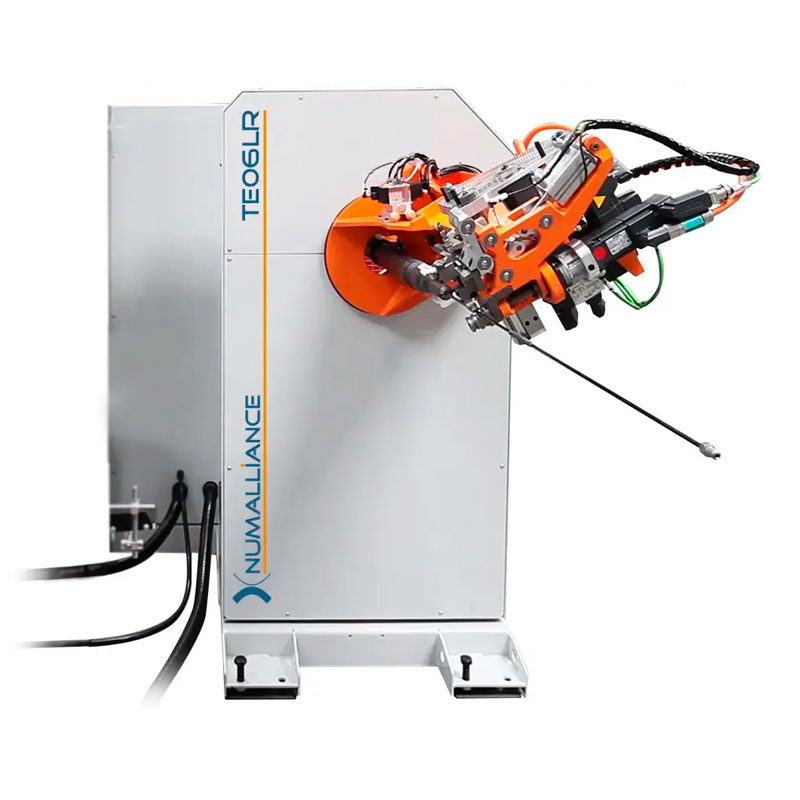

Product Description
Main features
● From 0.12″ to 0.79×0.08″ / 3 to 20×2 mm
● Applications : Automotive : hydraulic and fluid transfer lines, H.V.A.C.C., ERG tubes
● Air et Space : hydraulic piping circulation control wing, fuel, structure
● Electric bending machines
● Stackable multi-radii
● Draw bending with and without mandrel
● Patent on left and right bending
● Orbital bending head
● Easy integration in automated production cells
● Possibility to combine bending with complementary operations
Man / Machine Interface
● Industrial-Grade PC powered by proprietary software
● Multilingual dialog and programming interface on a 19″ touch screen
● Simulation program
● Additional I/O
● Internet connection : remote assistance and chat room
● Auto-corrective feedback from 3D-measuring devices
● Tool editor allows programming of complex parts
● Simulation tool to facilitate part set-up
● Program execution in slow motion
Technical Data
| TE06LR | TE16LR | TE16S | TE18LR | TE20/TE20LR | |
| Max tube ø | .25x.03" at 58 Ksi / 6,35x0,75 mm at 400N/mm² | .625x.08" at 58 Ksi / 16x2 mm at 400N/mm² | .625x.08" at 58 Ksi / 16x2 mm at 400N/mm² | 71x.08” at 58 Ksi/ 18x2mm at 400N/mm² 80x.08” at 36 Ksi/20x2mm at 250N/mm² | .80x.08" at 58 Ksi / 20x2 mm at 400N/mm² |
| .315x.03" at 36 Ksi / 8x0,75 mm at 250 N/mm² | .80x.08" at 36 Ksi / 20x2 mm at 250N/mm² | .80x.08" at 36 Ksi / 20x2 mm at 250N/mm² | .625x.08" at 85 Ksi / 16x2 mm at 600 N/mm² 600N/mm² | ||
| Tube length | 47 to 78" / 1200 to 2000 mm | 47 to 118" / 1200 to 3000 mm | 32" / 800 mm | 32" / 1200 to 3000mm | 79 to 157" / 2000 to 3000 mm |
| Max bending radius | 1" / 25 mm | 2" ( or 2.4" if 1 tool ) / 50 mm (or 62 if 1 tool) | 2,4" / 62 mm | 2” (or 2.4” if 1 stack) 50mm (or 62mm if 1 stack) | 2" / 50 mm |
| Bending tools | 3 | 4 | 1 jusqu'à 3 | 4 stacks Left and right | 4 |
| Left and right | Left and right | Left and right | Left and/or right |
