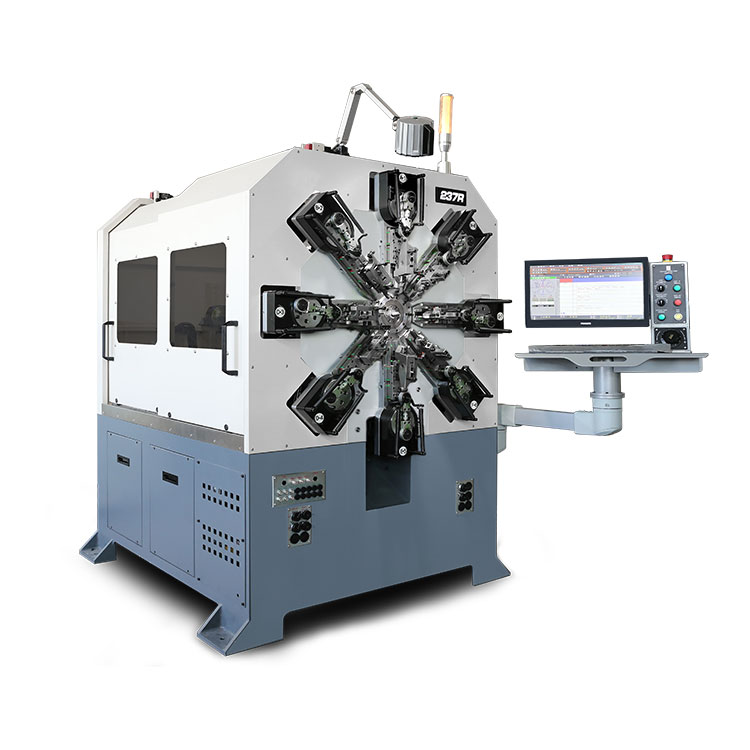

New CMM-12-237R Spring Machine

Introduction：
Product model: CMM-12-237R
spring machine product overview: Yongteng's latest masterpiece CMM-12-237R spring machine. It can produce ø0.4-2.3 mm wire diameter springs and wire forming, etc.) This machine adopts a unique cam-less and The rocker arm design is independently controlled by multiple sets of servo motors and can produce a variety of special-shaped springs, compression springs, tension springs, double torsion springs, battery springs, flat springs (spring springs) and various wire moldings.Precise and accurate, fast machine adjustment, stable and reliable.
Product specifications: 1480*1400*2098 (mm)
Wire diameter range: ø0.4-2.3 mm

GET A QUOTE

PRODUCTS

Spring Machine

Spring Coilers

Compression Spring Machine

Extension Spring Machine

Wire Forming Machine

Wire Bending Machine

Camless Spring Machine

Automatic Wire Feeder Machine

Spring End Grinding Machines

Spring Temper Furnace

Spring Machine Controller

Tube-coilers

Wire-straighteners

Spring Machine Toolings

DETAILS

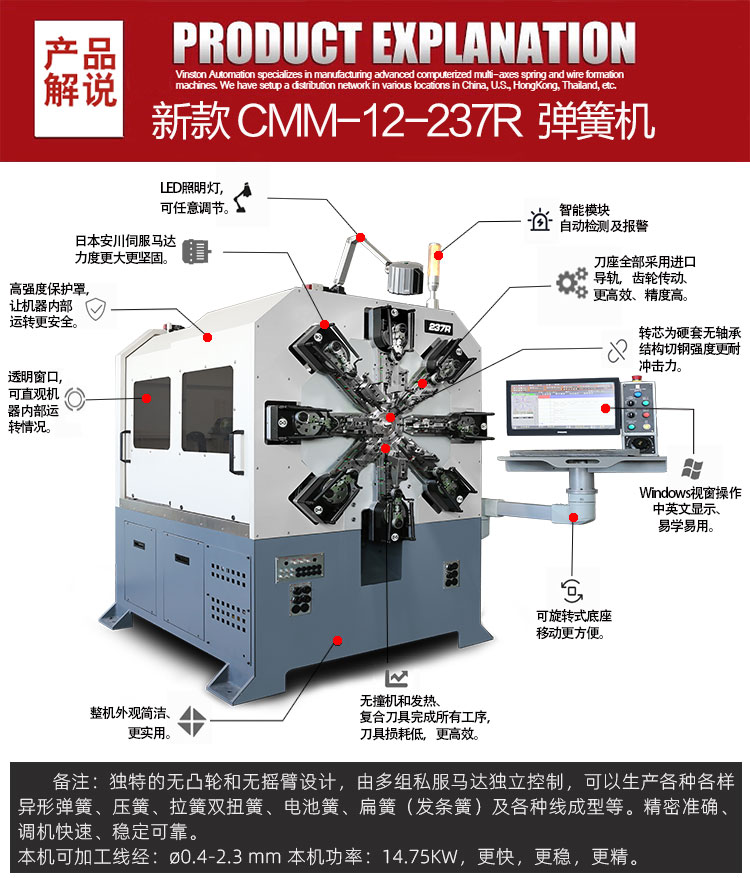

Product Advantage

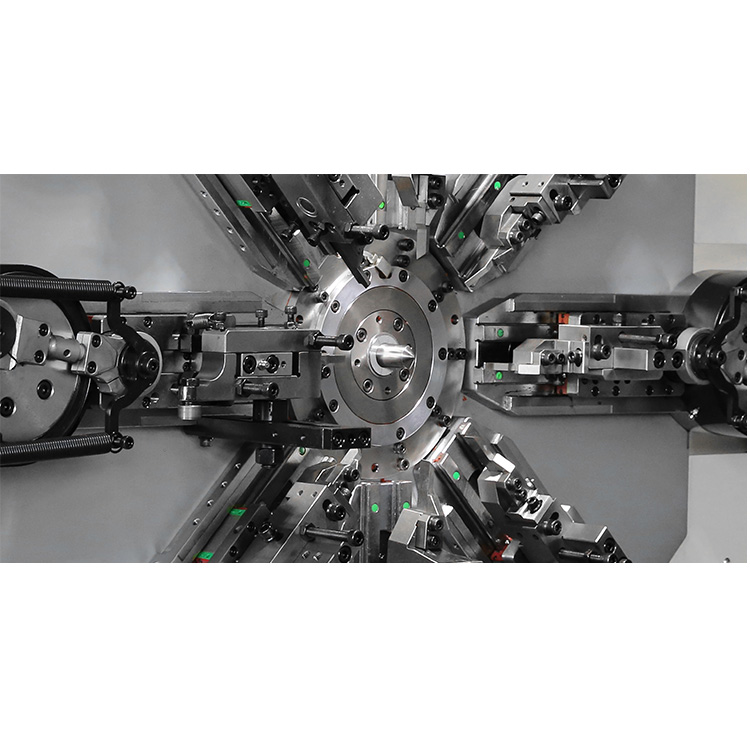

1. The core nozzle is relatively short, 155mm.
2. The arm can be finely adjusted left and right.
3. The arm travel is 90mm.
4. The transfer line has high concentricity (optical instrument alignment and debugging).
5. The wire feeding wheelbase is shortened to 96mm.
6. The rotary core is hard sleeved, with better engine oil lubrication effect and high concentricity.
7. The spool can be replaced with a smaller spool to make small lines.
8. All tool holder screws are uniform M6.
9. The first group of thread feeding spools can be adjusted individually.
10. The number of pneumatic interfaces can be expanded to 8.

Technical Parameters

Model CMM		CMM-12-237R
Processing wire diameter		ø0.4-2.3 mm
Maximum wire feeding command value		10000.00mm
Minimum wire feed command value		0.01mm
Maximum wire delivery speed of		100m/分钟
Maximum wire feeding length		infinite
axes		12 axes (including servo angle bender)
Total output power of servo motor		14.75KW
Input voltage		380V
Computer specifications		Pentium industrial computer
Process data storage capacity		of over 2000
Air pressure system	pressure	5-6KG/cm
	probes	3个
Machine size	thickness	1480mm
	Width	1400mm
	Height	2098mm
Machine weight		2200KG

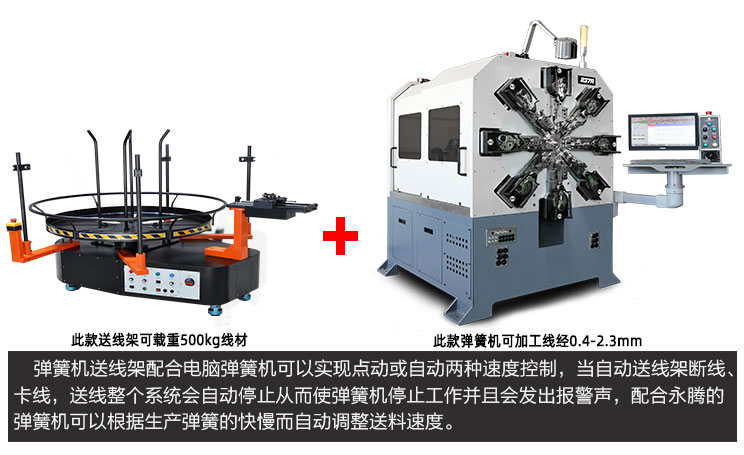

Corollary Equipment

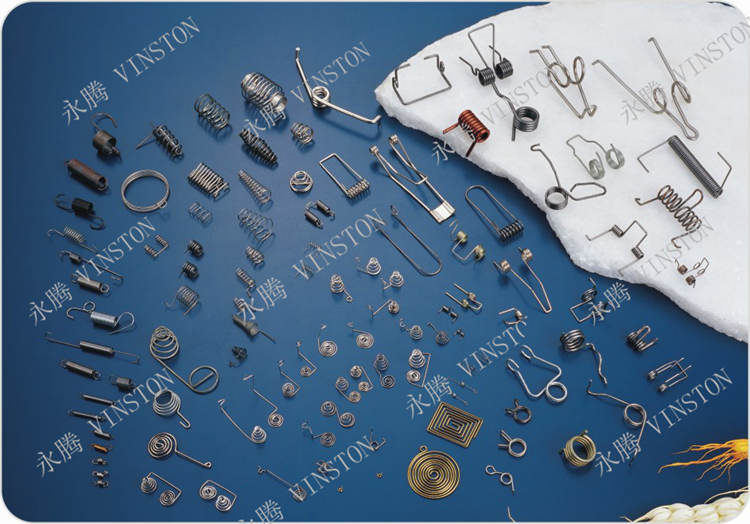

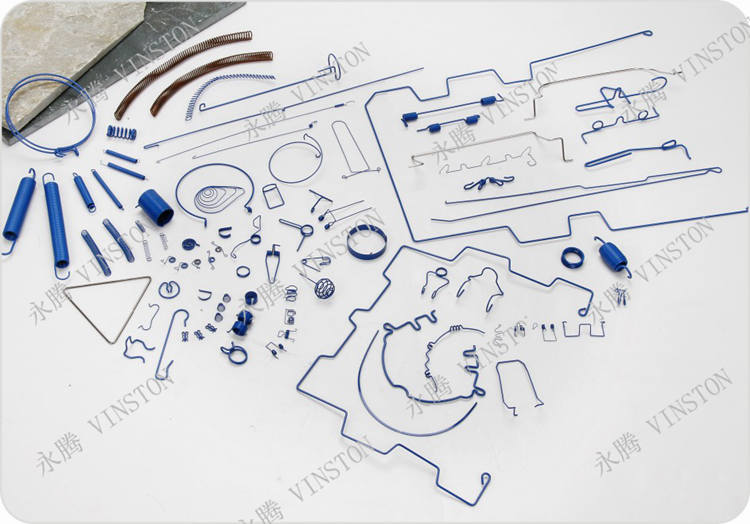

Product Application

This model is suitable for producing high-difficulty precision springs such as electronics, electrical appliances, stationery, instruments, toys, hair accessories, handicrafts, wire molding, etc. It is especially suitable for various internal (external) double torsion springs.
