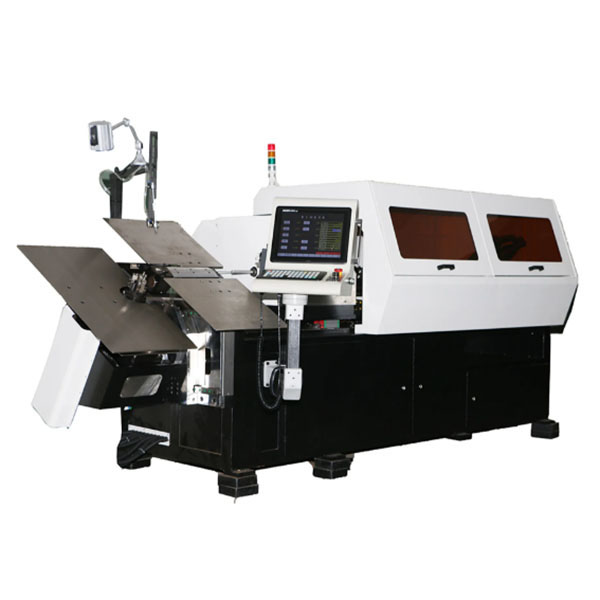

Product Introduction
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese branded servo motor and screen display with high quality controller. Easy operation and fast turn-key.
Advantages & Feature:
3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable. Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
Auto Industry area2）Metal wire industry
Display table and cargo shelf4）Furniture and Kitchen
Hardware industry6）Mattress, Sofa spring area
Architecture area8）Hardware Artcraft
|
Model |

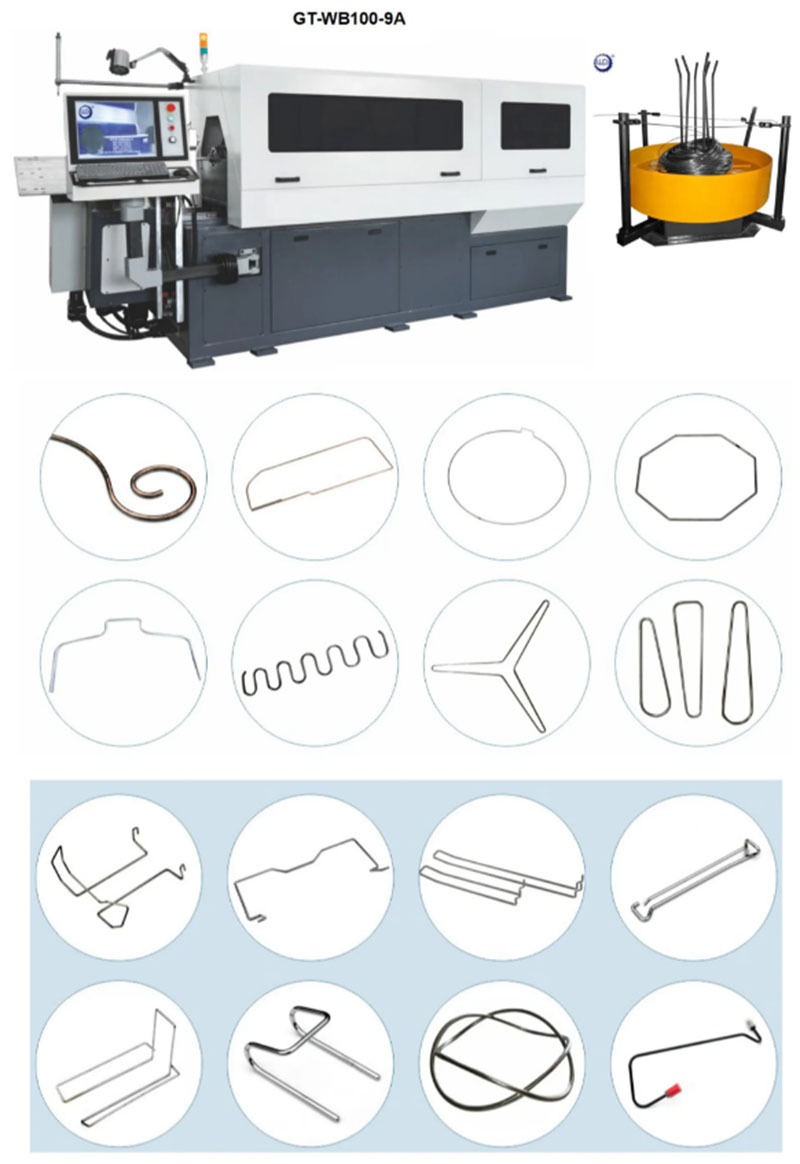

GT-WB-100-9A |

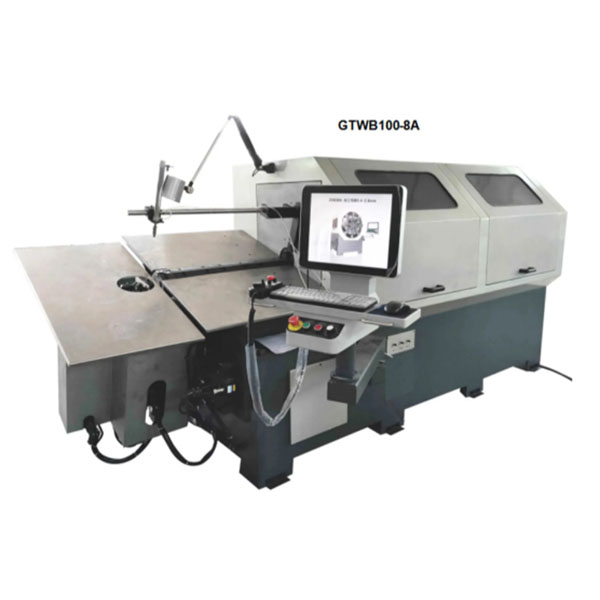

GT-WB-80-8A |
GT-WB-70-10A |
GT-WB-70-8A |
GT-WB-70-7A |
|
Wire size |
4.0-10.0mm |
4.0-9.0mm |
2.0-7.0mm |
2.0-7.0mm |
2.0-7.0mm |
|
Axis |
9 | 8 | 10 | 8 | 7 |
|
Wire feeding value (mm) |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
Max.10000.00 Min.0.01 |
|
Feeding length number |
3pairs/对 |
3pairs/对 |
3pairs/对 |
3pairs/对 |
3pairs/对 |
|
Wire turning angle |
Unlimited |
Unlimited | Unlimited | Unlimited | Unlimited |
|
Platform Lifting Height |
+25至-120mm |
+25至-120mm | +25至-120mm | +25至-120mm | +25至-120mm |
|
Twisting head lift height |
+20至-180mm |
+20至-180mm | +20至-180mm | +20至-180mm | +20至-180mm |
|
Left to right moving range |
Left:100mm Right:50mm |
Left:100mm Right:50mm |
Left:100mm Right:50mm |
Left:100mm Right:50mm |
Left:100mm Right:50mm |
|
Feeding front and back moving range |
Front:300mm Back:100mm |
/ |
Front:300mm Back:100mm |
/ | / |
|
Total output power of servo motors |
27.8KW |
25.8KW |
24.2KW |
17.5 |
16.2KW |
| Automatic decoiler |
1000KG |
800KG | 500KG | 500KG | 500KG |
|
Machine size(cm) |
420x152x160 |
420x152x160 |
380x1520x1600 |
260x122x160 |
260x122x160 |
|
Machine weight |
4500.0(kg) |
4200.0(kg) | 3800.0(kg) | 3200.0(kg) | 2800.0(kg) |
Technical Paramter
|

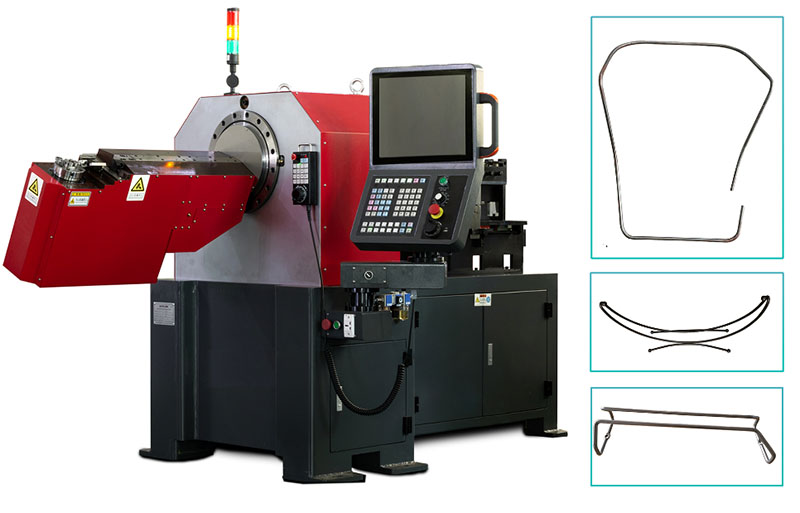

Model |
GT-80R-5A |
GT-100R-5A |
GT-130R-5A |
GT-140R-5A |
GT-160R-5A |
|
Wire size |
3.0-8.0mm |
4.0-10.0mm |
5.0-13.0mm |
6.0-14.0mm |
8.0-16.0mm |
|
Axis |
3 | 3 | 3 | 5 | 5 |
|
Air axis |
2 | 2 | 2 | / | / |
|
Wire feeding value |
Max.1000.00 Min.0.01 |
Max.1000.00 Min.0.01 |
Max.1000.00 Min.0.01 |
Max.1000.00 Min.0.01 |
Max.1000.00 Min.0.01 |
|
Feeding length number |
3 pairs/对 |
3 pairs/对 |
3 pairs/对 |
3 pairs/对 |
3 pairs/对 |
|
Platform moving |
800mm |
800mm |
800mm |
800mm |
800mm |
|
Twisting head lift height |
32mm |
32mm |
32mm |
32mm |
32mm |
|
Total output power |
10.4KW |
12.8KW |
20.3KW |
26.8 KW |
29.8KW |
| Decoiler |
500KG |
1000KG |
1000KG |
1000KG |
1000KG |
| Machine size | 220 x 100 x 150 |
250 x 140 x 160 |
250 x 150 x 160 |
380 x 210 x 170 |
380 x 210 x 170 |
|
Machine weight |
2600.0(kg) |
3000.0(kg) |
3400.0(kg) |
4000.0(kg) |
4500.0(kg) |
