PRODUCT DETAIL

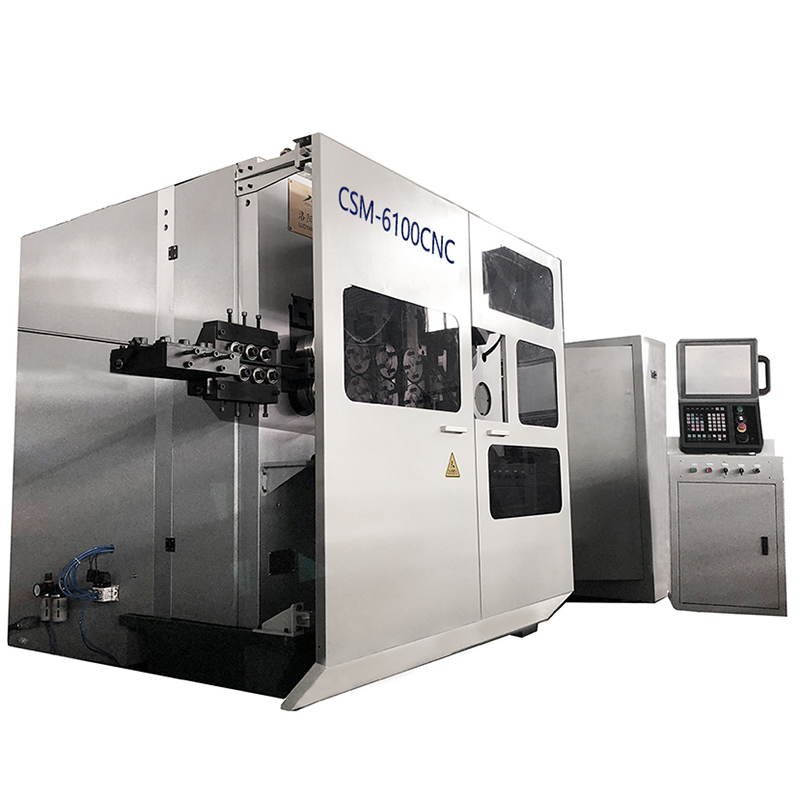

Model No:CSM-6100CNC
Wire Dia:6-10 mm
Max. Outside Diameter:110 mm
Speed of the Wire Feed:93 m/min
Total power of Motors:73.4 Kw
Net Weight:10000 Kg
Machine Dimension:2350*1600*1870mm
Motor:SANYO DENKI Or YASKAWA servo motor in Japan
Driver part:Yaskawa servo motor driver
Computer control system:Arcuchi, Taiwan hust ,TPK
Material of the wire:65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on
Advantages
(1) The large parts are made of whole steel plate, which increases the strength of the equipment.
(2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
(3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
(4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
