Product Description

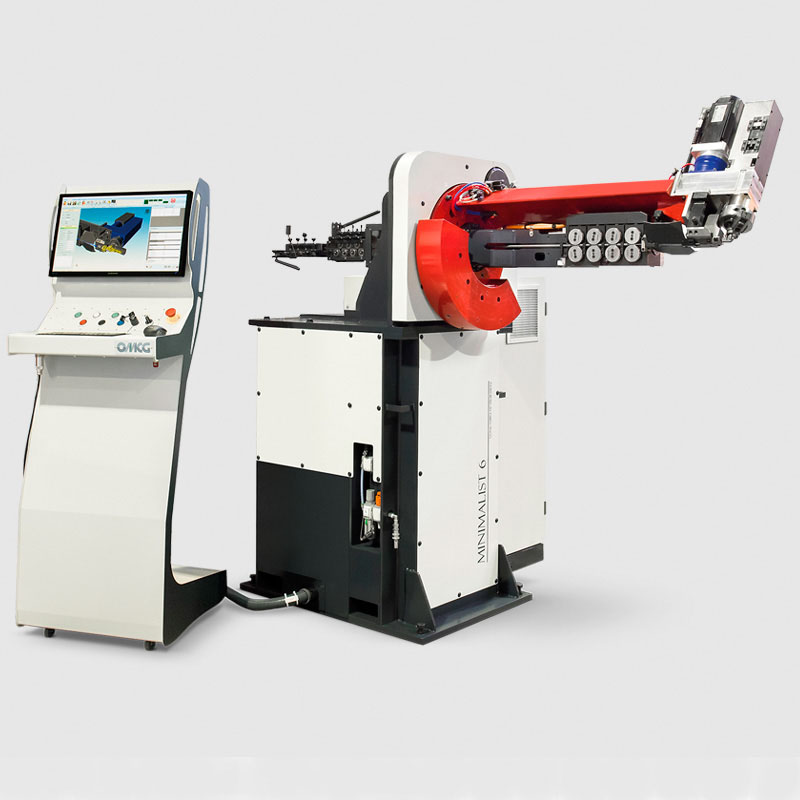

Minimalist is the entry gate to the OMCG world for wire diameter up to 6.35 mm (1/4”). Although essential, it features solutions that doesn't compromise on performances such as the innovative front feeder, the aluminum arm and a full electric automation system based on a real CNC. Besides OMCG’s legendary reliability and long lasting mechanics, it shares with the latest OMCG CNC benders the new 3D human machine interface software Easy Programming 4 with simulation and anti-collision check.
MINIMALIST 6 Technical Data
| Wire diameter (steel/stainless steel) | 2 - 6.35 mm (0.08-0.25 in) |
| Nominal tensile strength | 600 N/mm2 |
| Axes | 3 |
| Bending radii (on insert) max. | 2 |
| Radius change | pneumatic |
| Feeding axis (x) | |
| Material feed length | 0 to infinite |
| Feed accuracy | ±0.1 mm (±0.004 in) |
| Max. speed | 59 m/min (193,57 ft/min) |
| Bending axis (y) | |
| Bend accuracy | ±0.2° |
| Bending time (90° bend) | 0.25 s |
| Bending time (180° bend) | 0.40 s |
| Radius generation | available |
| Wire guide arm length | 850 mm (33.46 in) |
| Rotating platform axis (z) | |
| Accuracy | ±0.2° |
| Max. rotation angle | ±172° |
| Max. rotation speed | 530°/s |
| Power, dimensions and weight | |
| Mains electricity* | EU: 400 V 3-ph+N 50 Hz US: 208-480 V 3-ph 60 Hz |
| Total installed power | 10,4 kW |
| Required power | 4 kW |
| Average power consumption** | 1.5 kWh |
| Compressed air requirements | 6 bar (90 psi) @ 100 Nl/min |
| Dimensions (LxWxH), straightener and safety guards included | 3050 x 2050 x 2000 mm (120 x 81 x 79 in) |
| Weight | 1700 kg (3748 lb) |
